Zeiss Comet 5M Scanner

This Zeiss Comet 5M Structured Light Scanner was manufactured in 2019 and comes with ZEISS colin3D software.

Specifications:

• Camera Resolution: 2448 x 2050
• Measuring Volume (mm³)
  • Measuring Field 45: 45 x 38 x 30
  • Measuring Field 75: 74 x 62 x 45
  • Measuring Field 100: 118 x 98 x 60
  • Measuring Field 250: 255 x 211 x 140
• Working Distance (mm): 760 for measuring fields 45/75/100/250
• Camera Resolution: 5 Million Measuring Points
• Acquisition time per measurement: ~1 second

Includes:

• Camera/projector

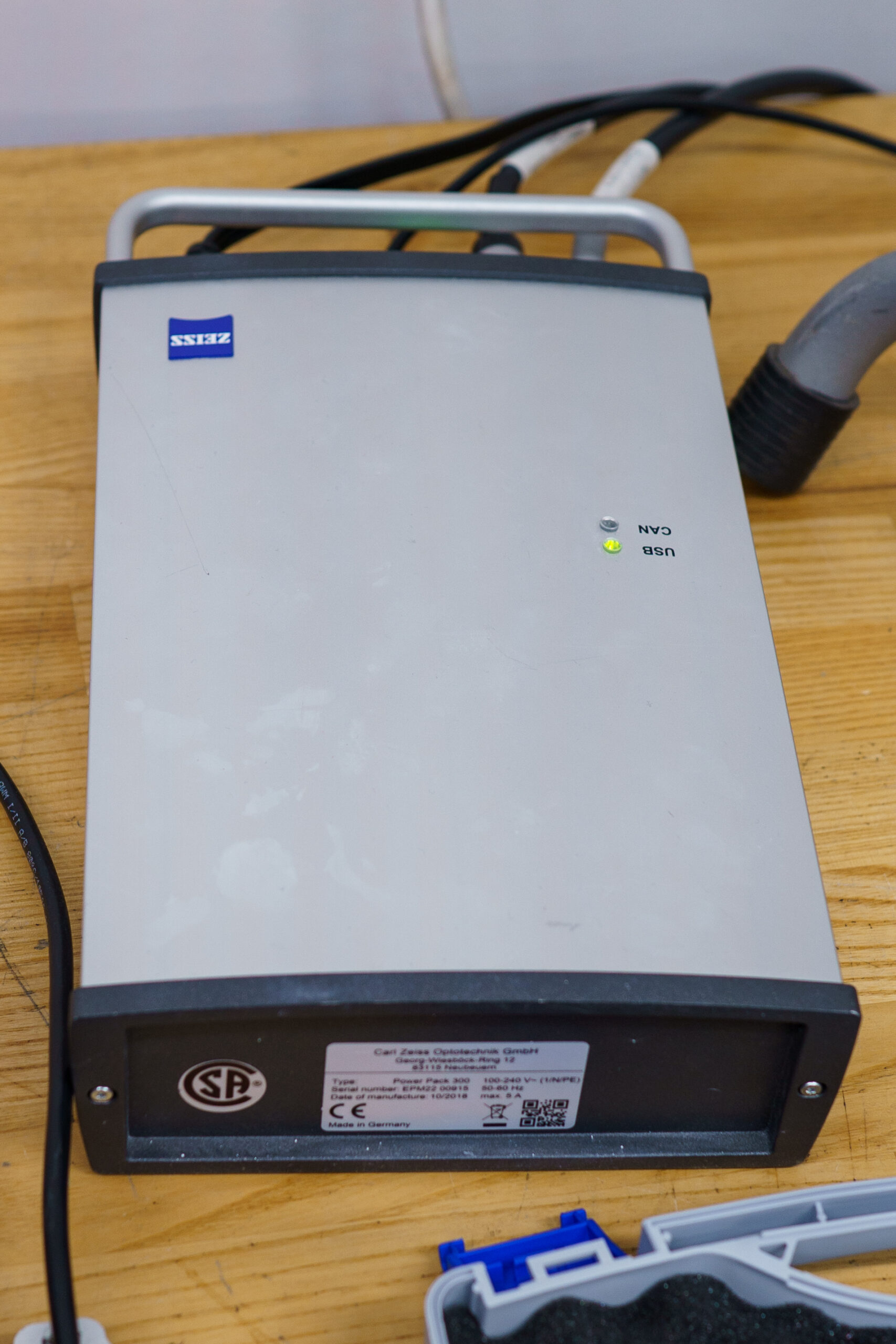

• Comet Power Pack 300

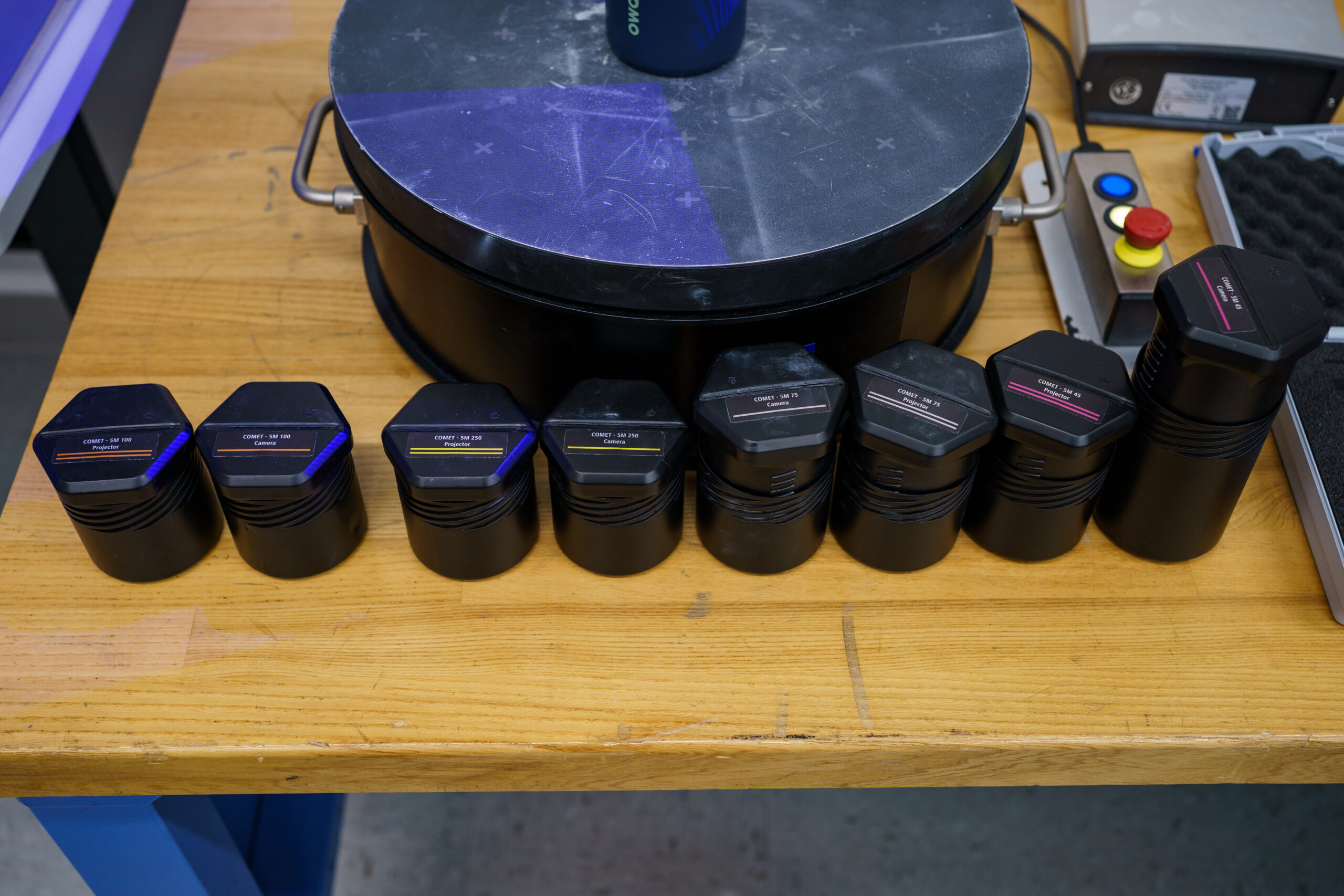

• Comet rotary table
• All necessary cords and cables
• 2 carrying cases

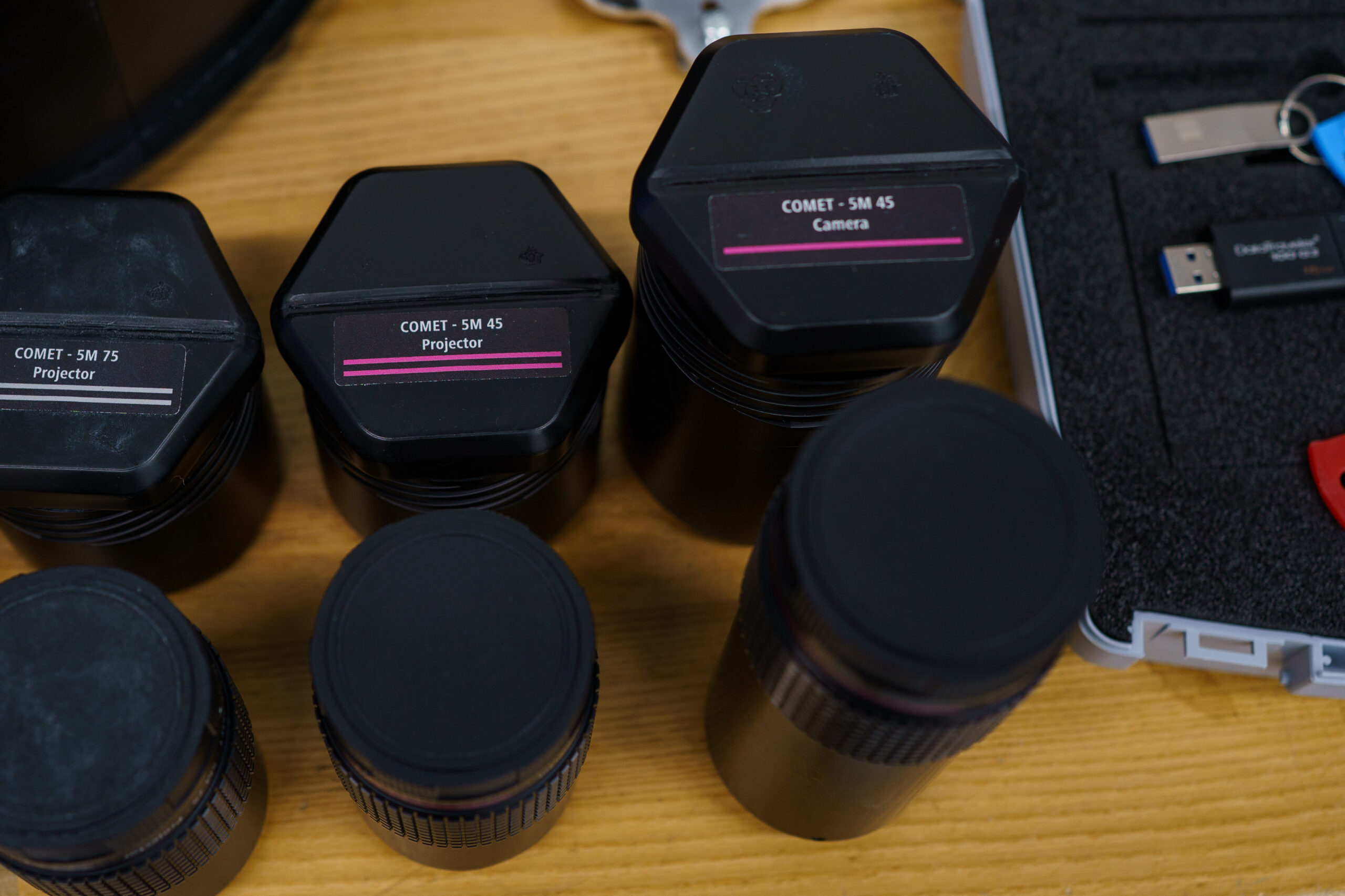

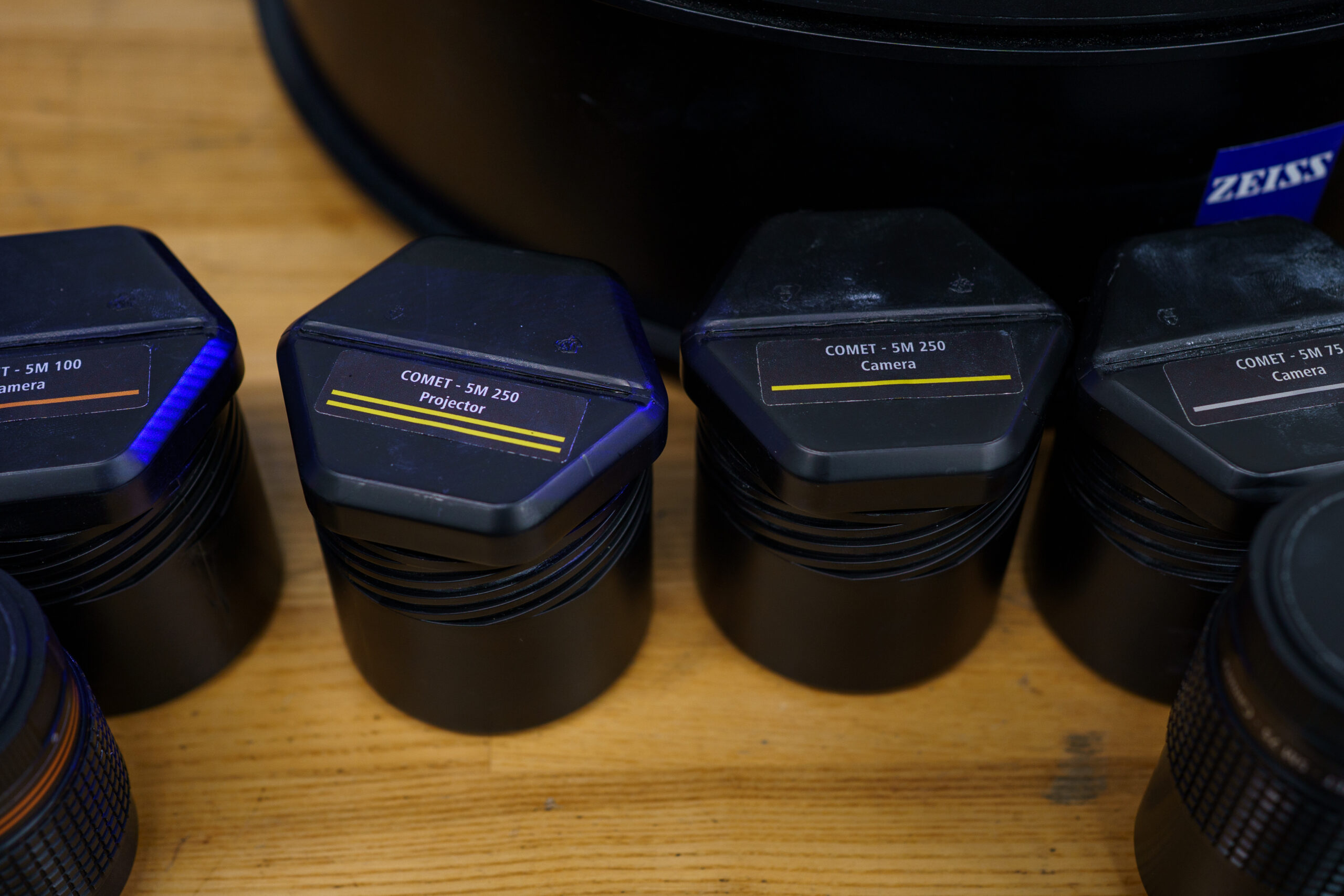

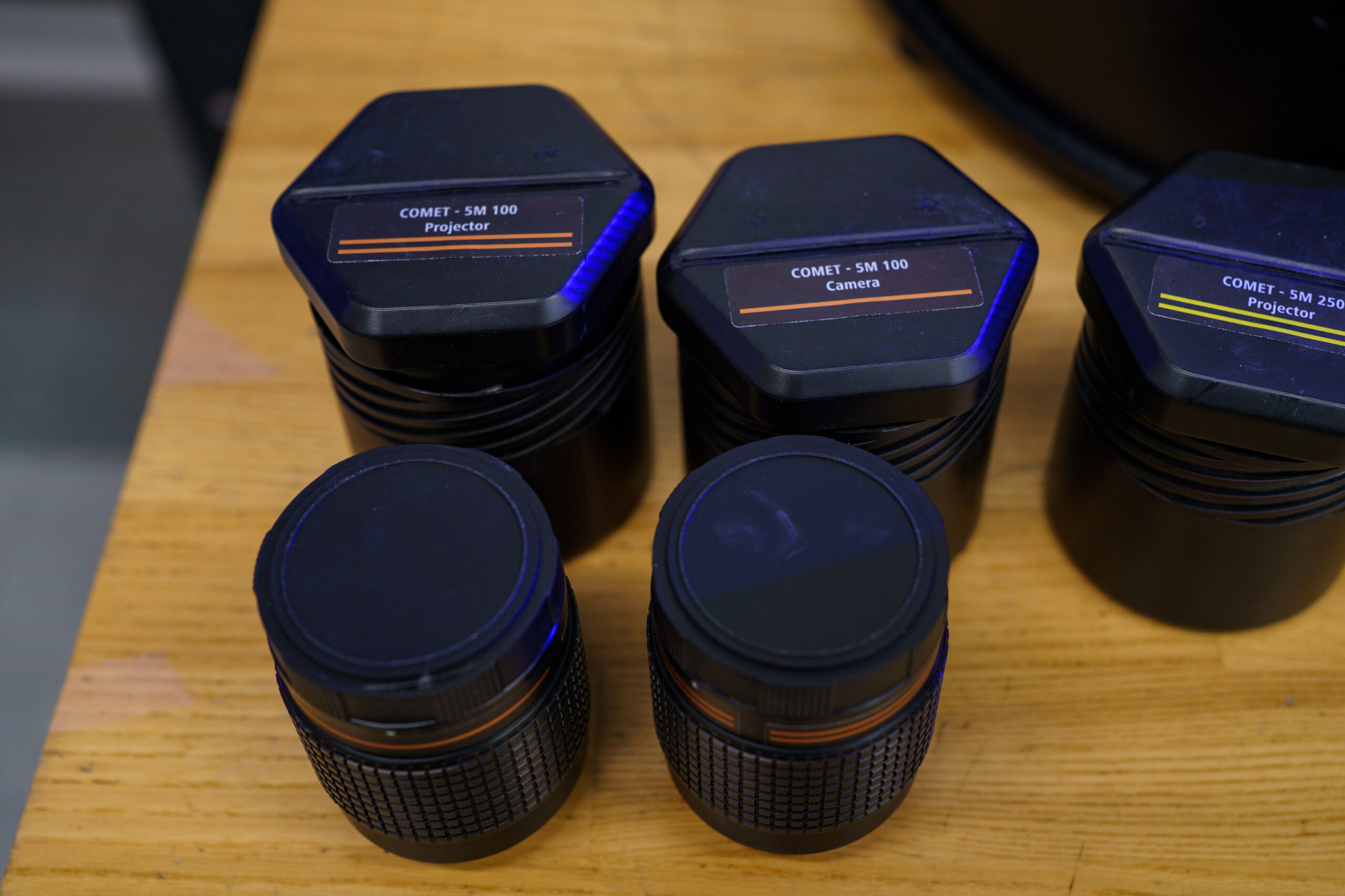

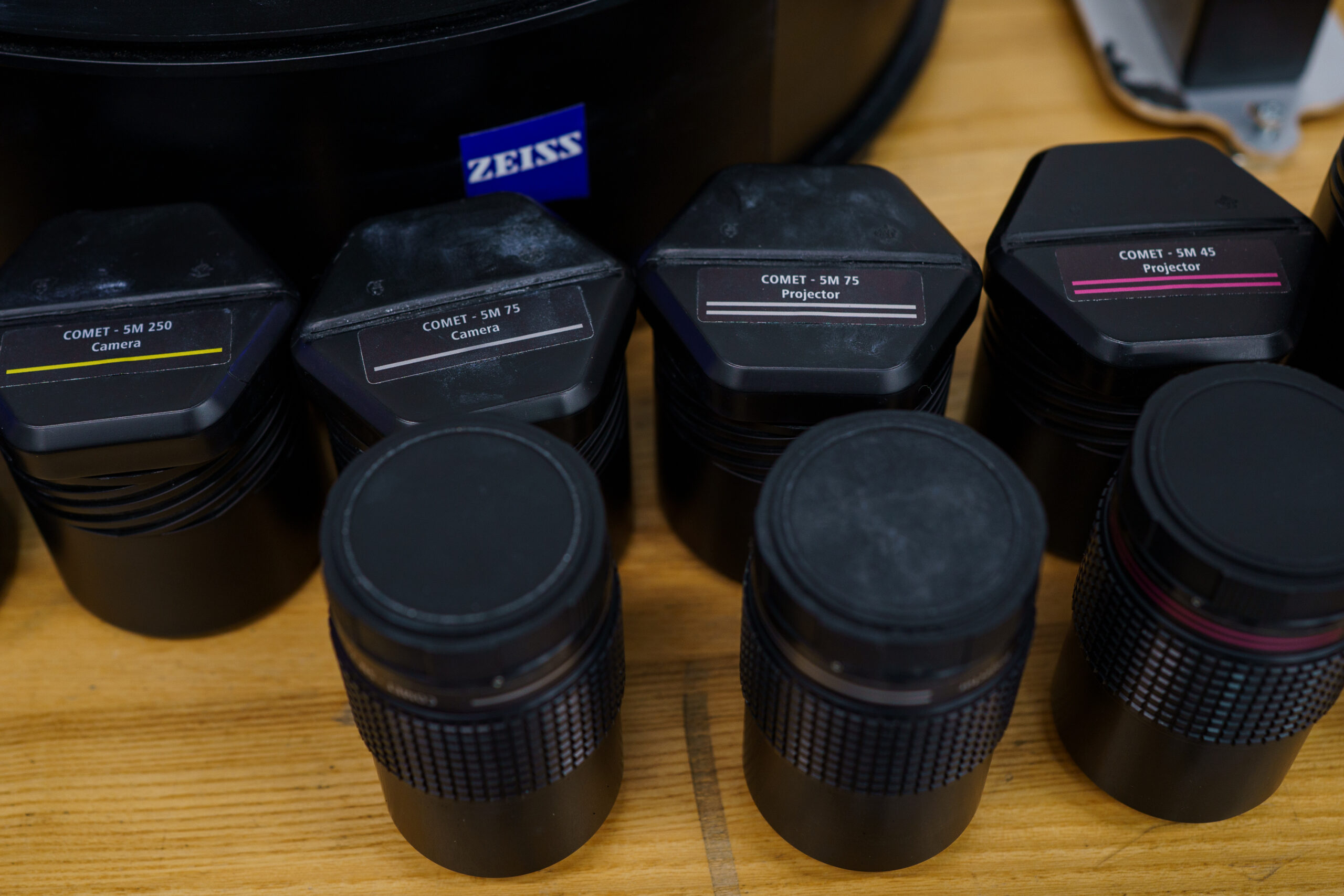

• Four sets of lenses
  • Comet-5M 45
  • Comet-5M 75
  • Comet-5M 100
  • Comet-5M 250
• Two calibration plates
  • CP_P_100
  • CP_P_300
• Three USB drives with calibration information

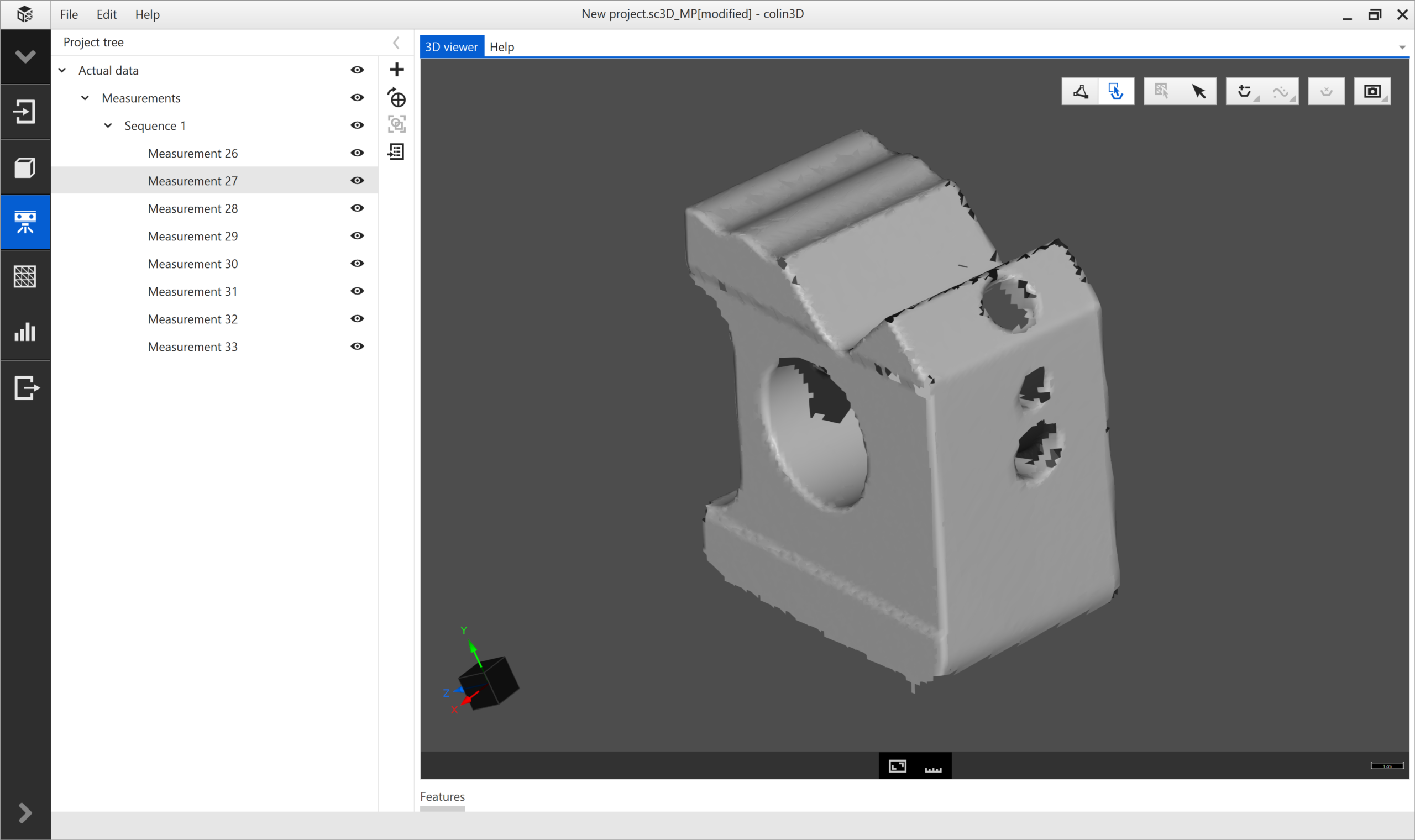

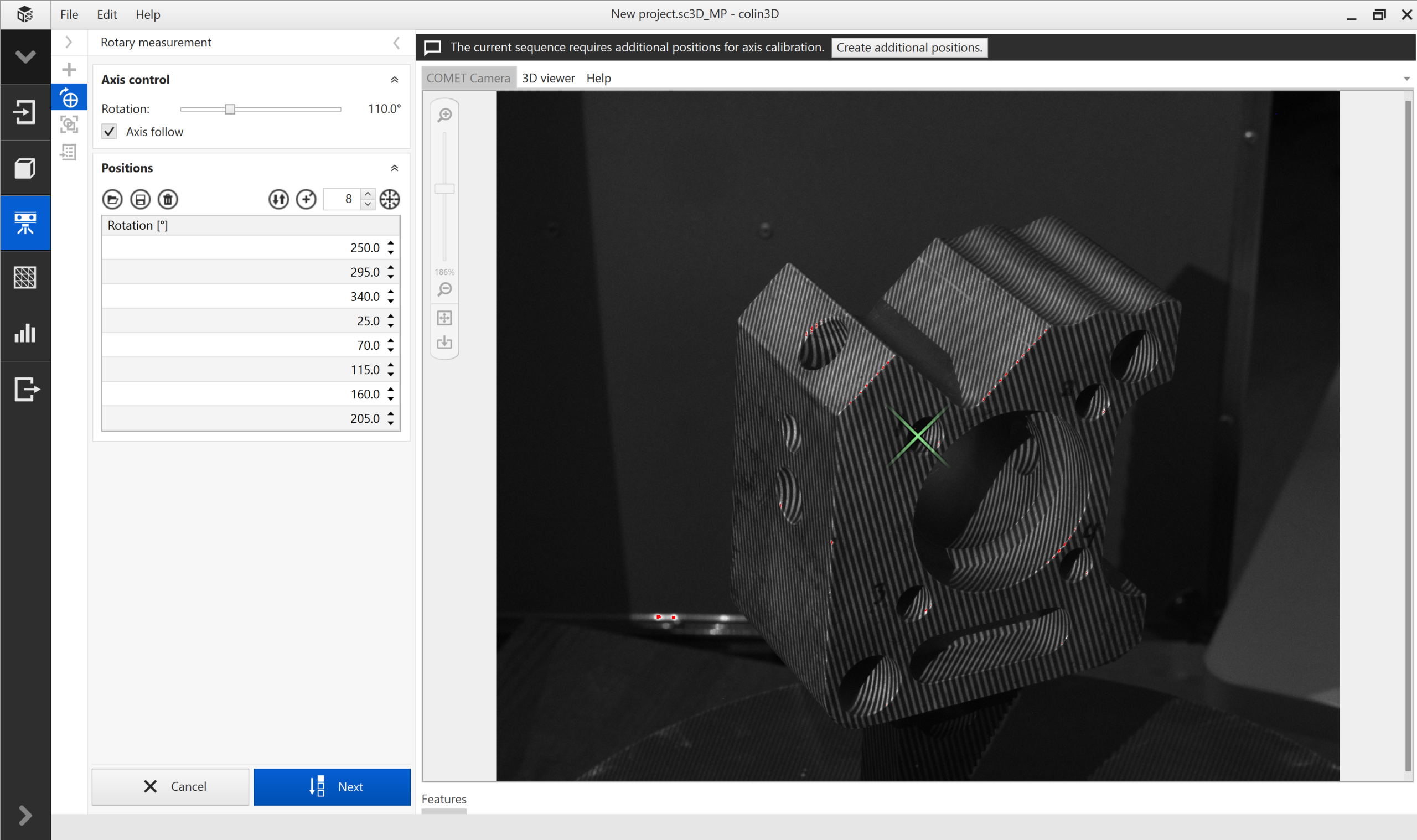

• ZEISS colin3D software (ID-FLB5804062)

Stand not included
