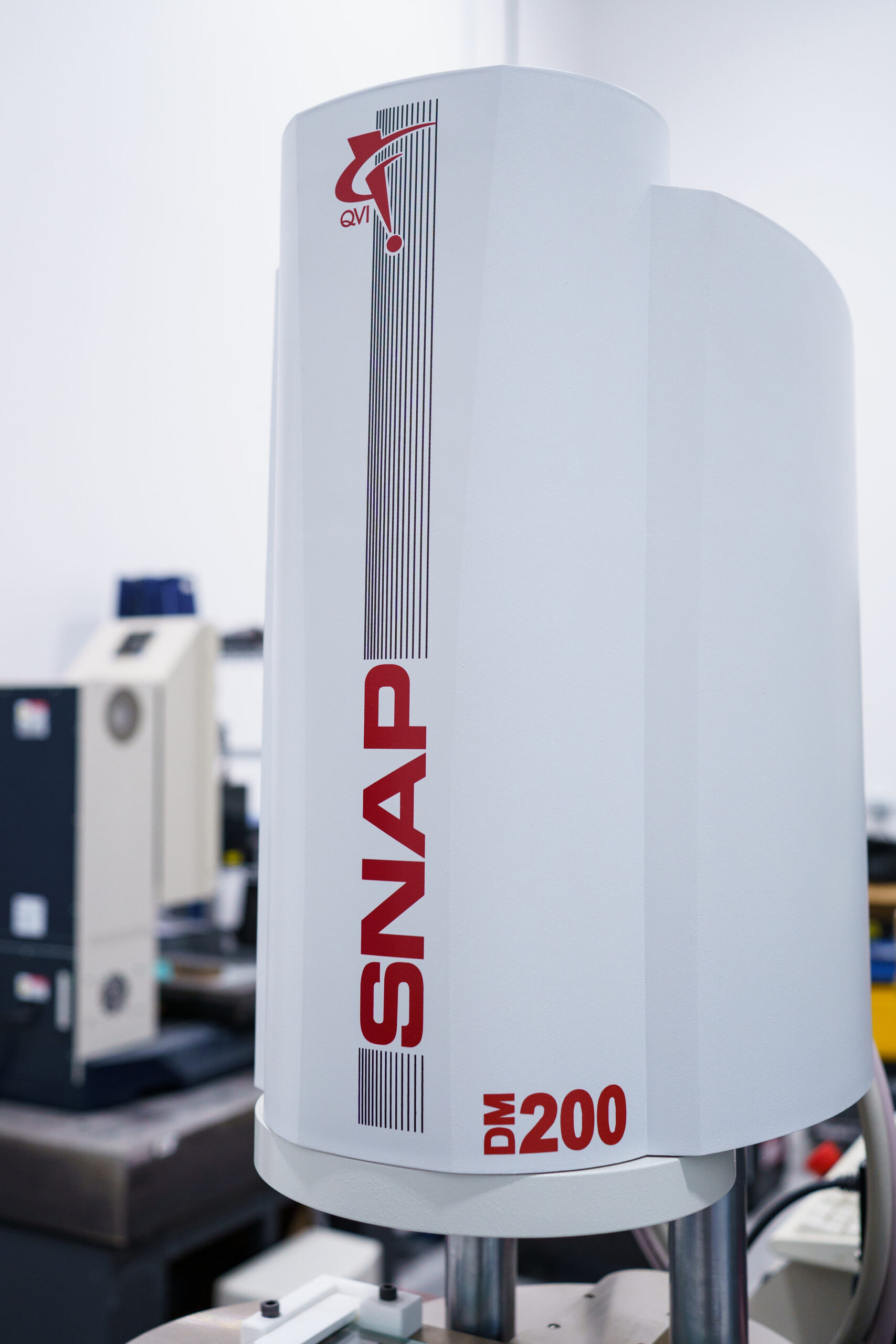

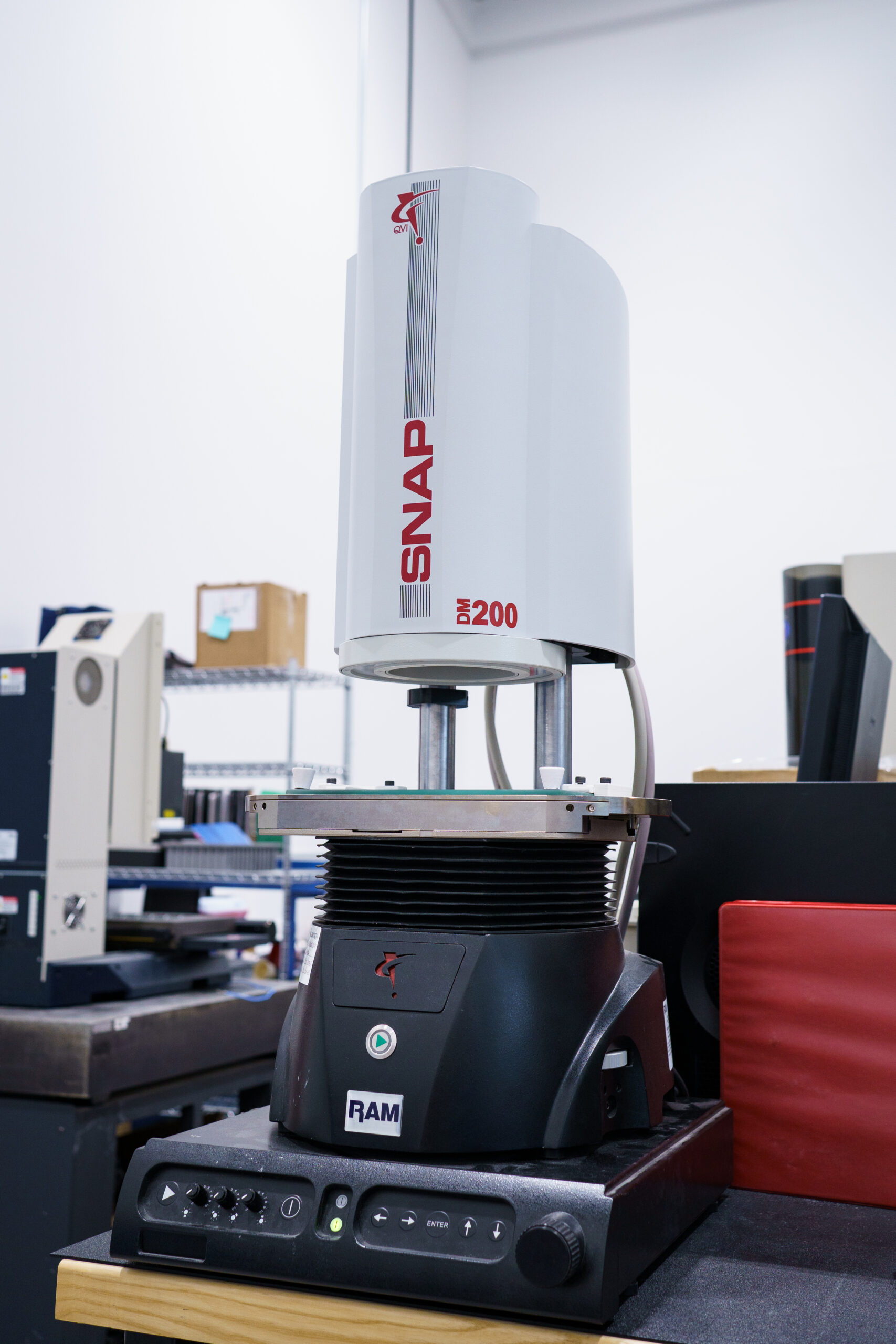

OGP SNAP DM-200
Manufactured in 2017, this SNAP DM-200 vision system comes with a computer (Win 8.1 PRO), monitor, and keyboard. It is a clean, well maintained machine.
Specifications:
Low Mag: 4.0+L/150µm, High Mag: 2.0+L/150µm

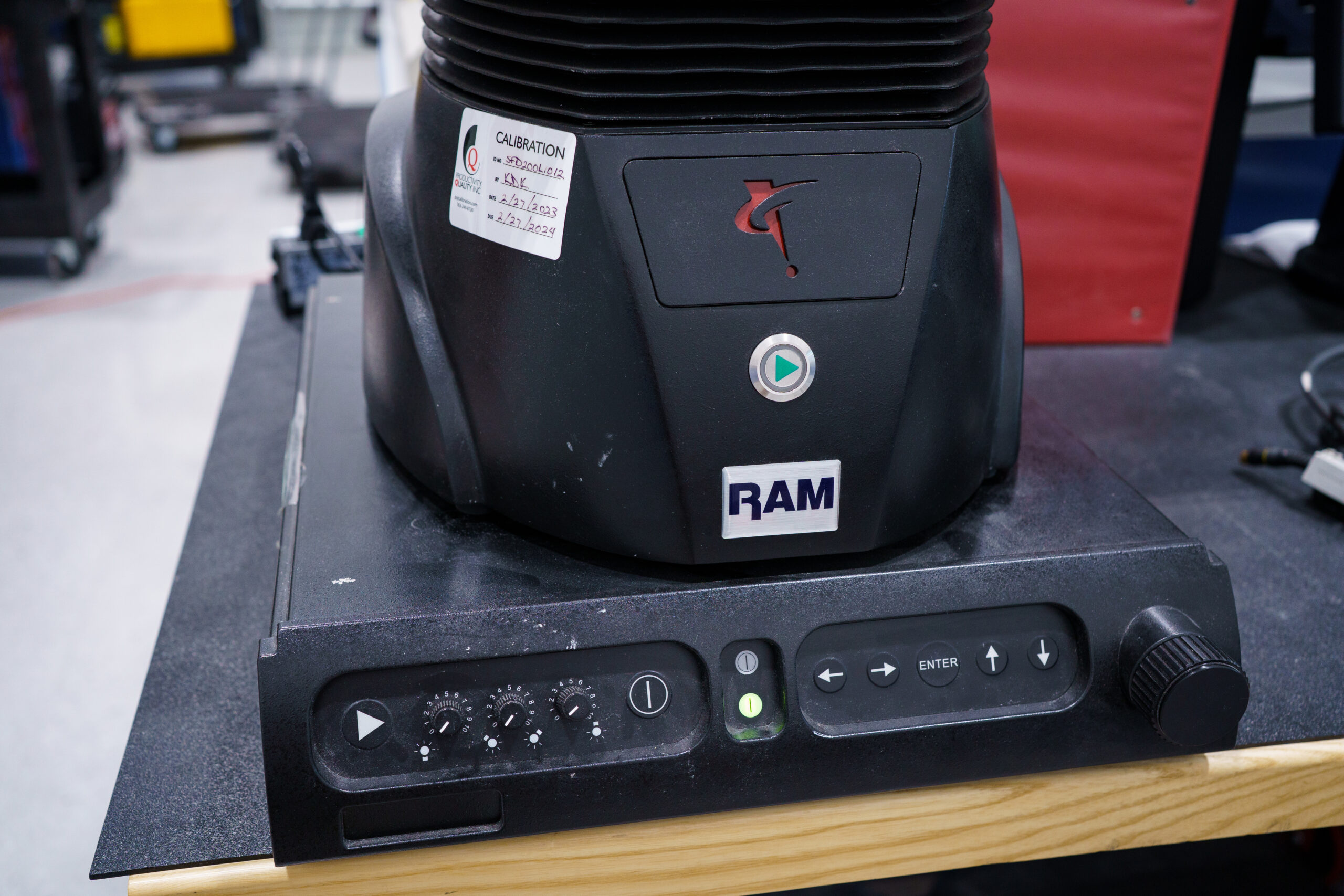

- Accuracy (as of last calibration – 2023)
- Linear: Low Mag: .00010”, High Mag: .00001”
- Repeatability: .00001”
- Area accuracy: 7 + L/50µm
- Measuring Range:
- X: 250 mm
- Y: 100 mm
- Z: 75 mm
Includes:
- Snap-X Measure & Compare software
- Version: 2.00
- Illumination
- All LED and monochromatic
- Substage profile light, coaxial square-on surface light and programmable 8-sector oblique ring light
- Telecentric, dual optical magnification with 4X high magnification lens
$25,000.00
