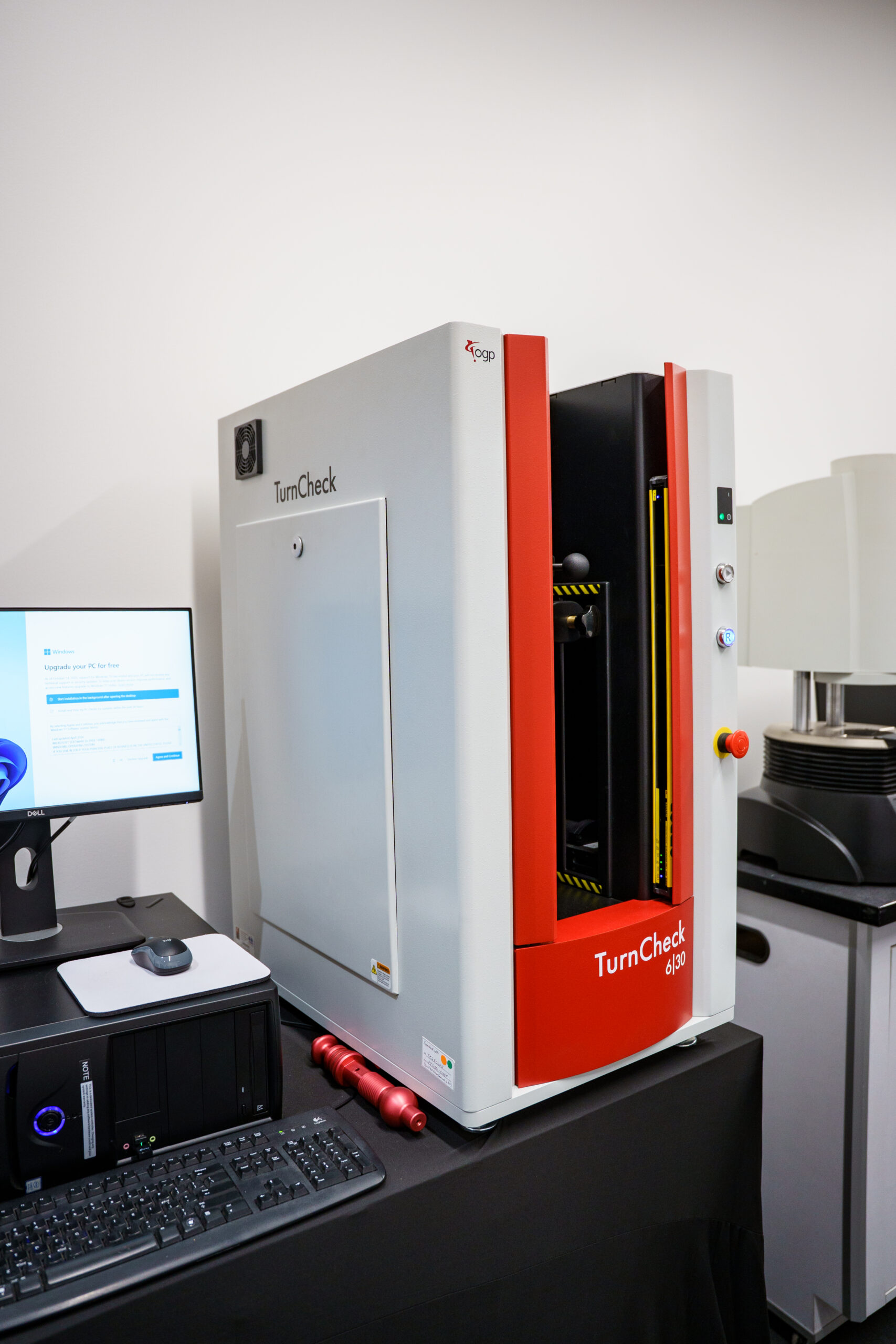

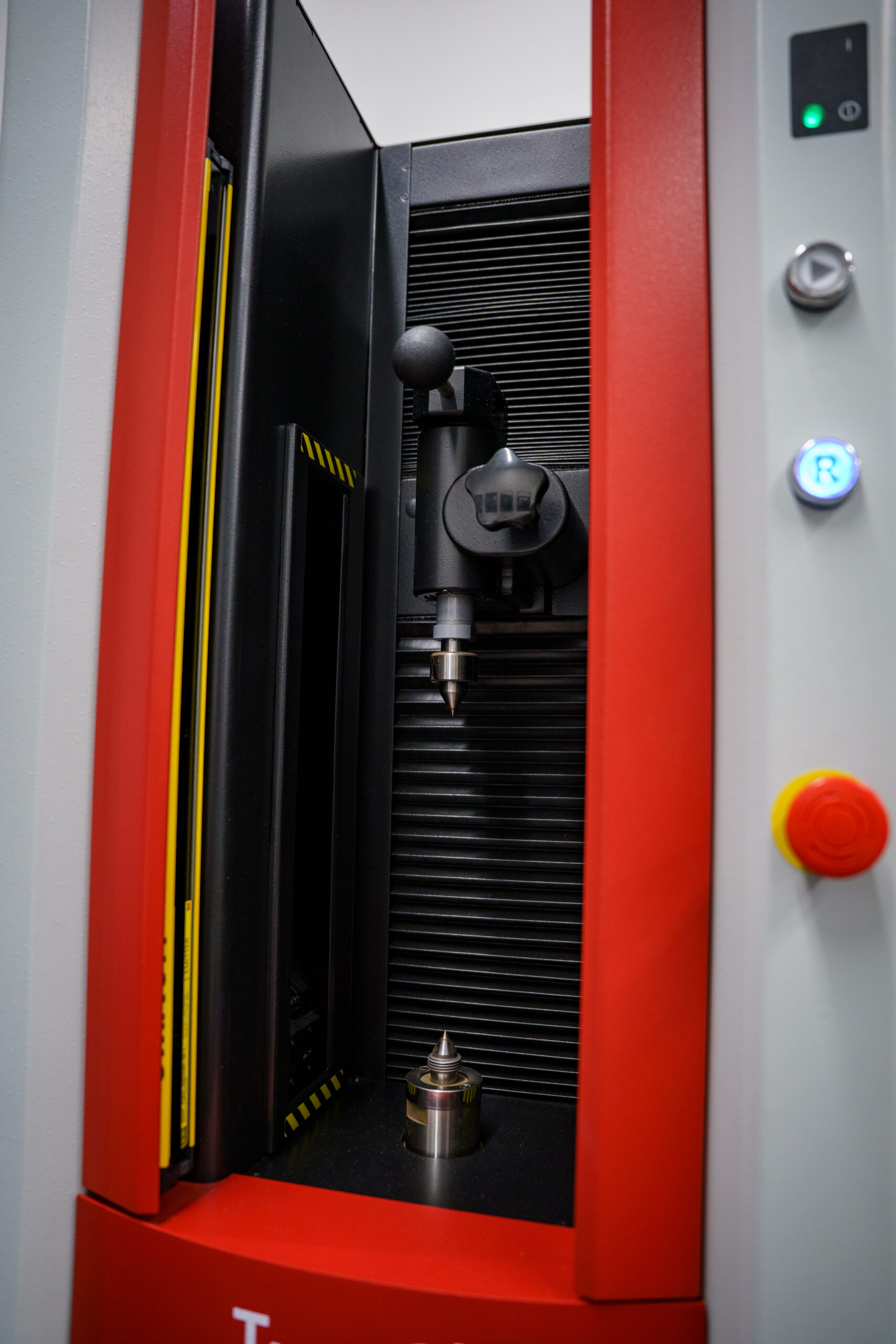

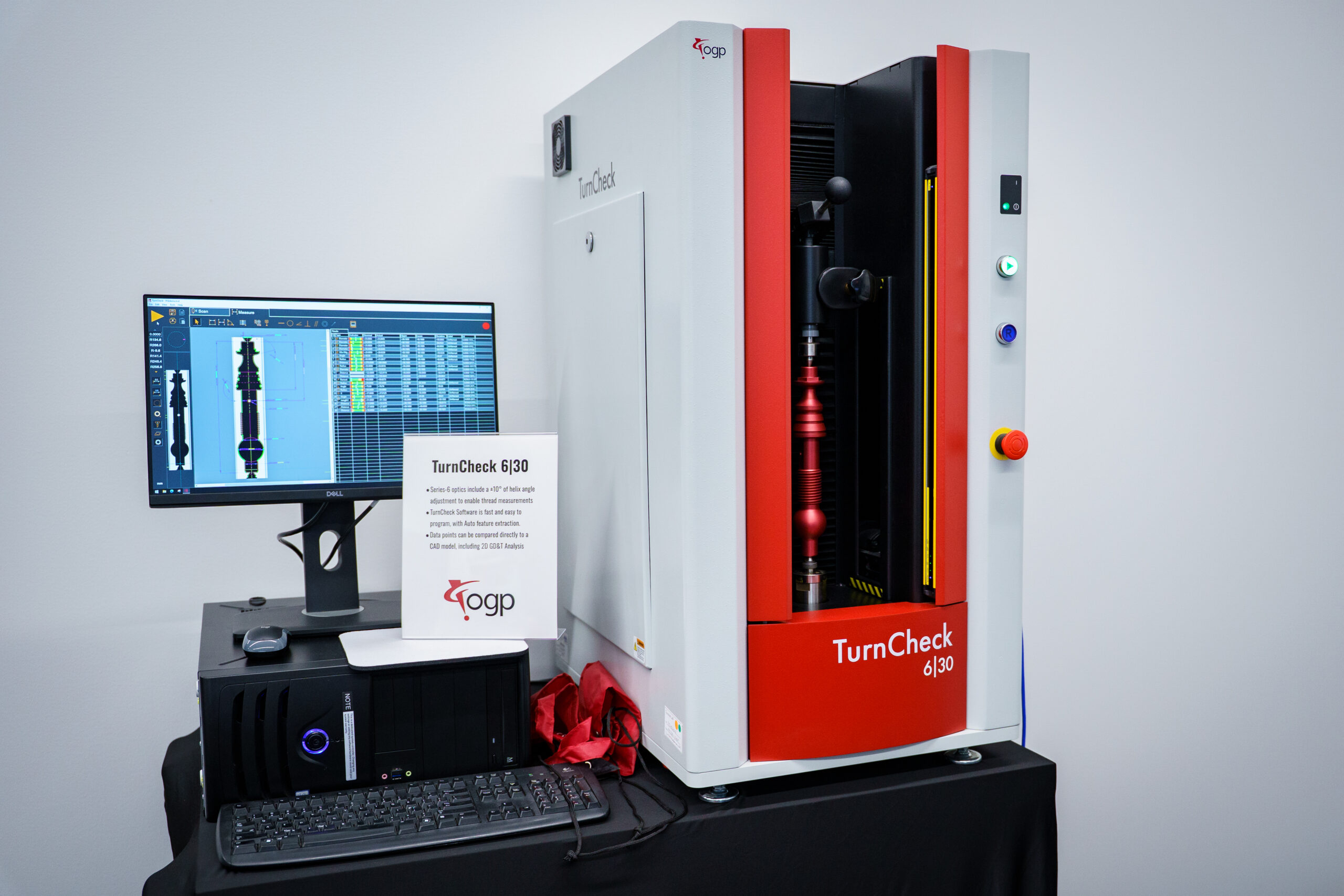

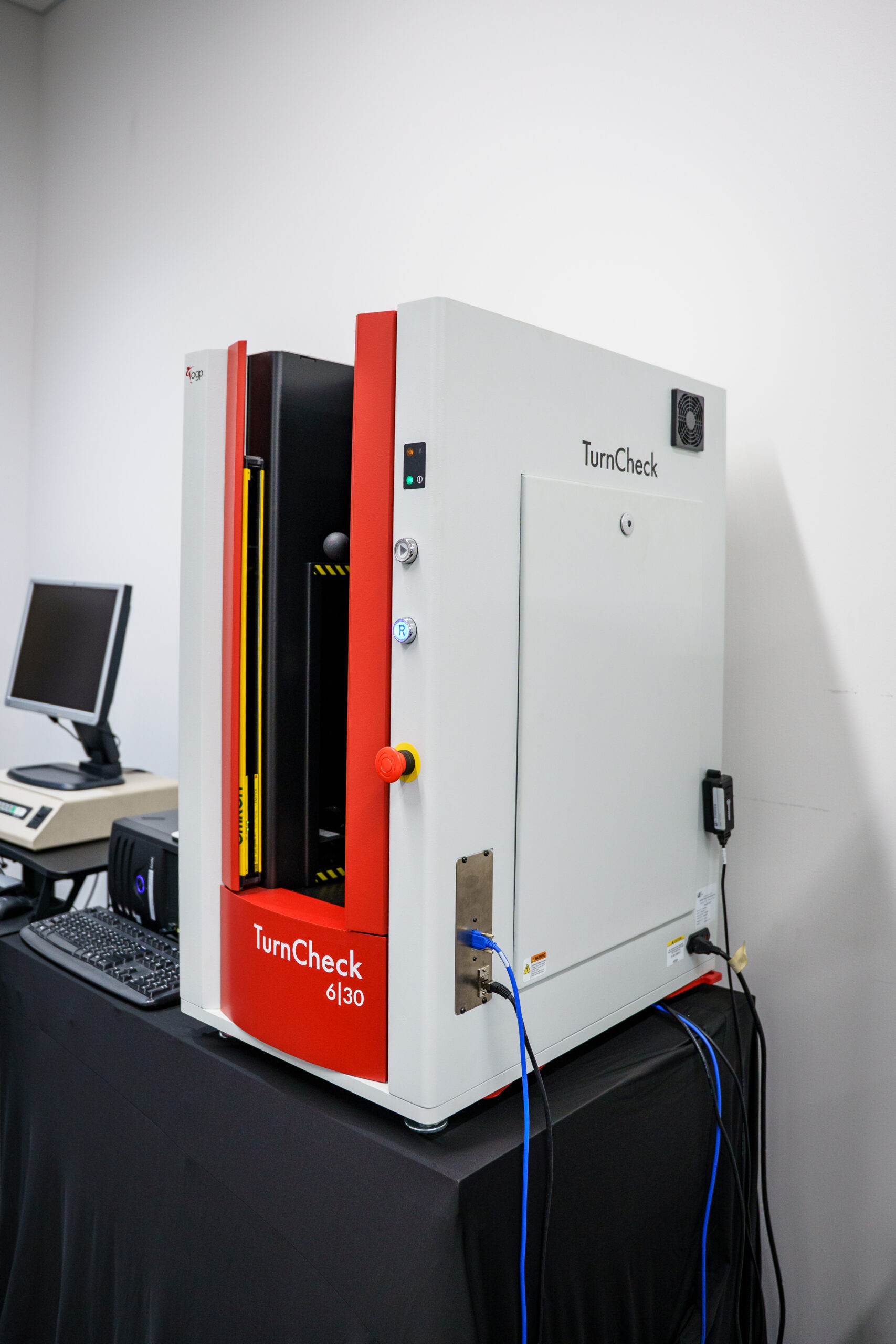

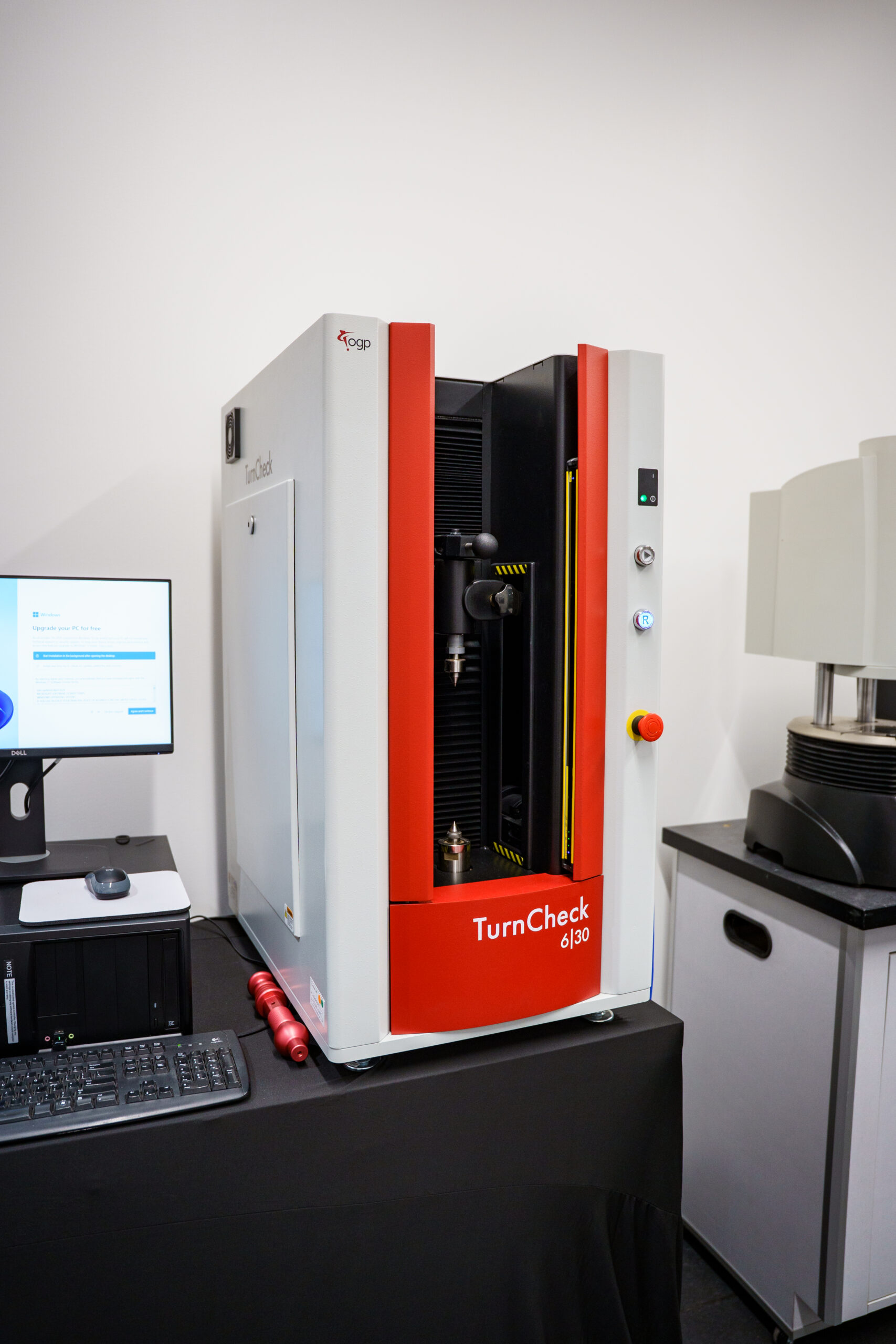

OGP TurnCheck 6|30

High-performance benchtop shaft measurement system manufactured in 2022. This machine has been kept in a showroom environment. It has been well maintained and comes with a computer, monitor, keyboard, and easy-to-use TurnCheck software.

Specifications

• Accuracy
  • Diameter Measurement: 1.8 + D/100 µm
  • Diameter Repeatability: 1.0 µm
  • Length Measurement: 3.5 + L/150 µm
  • Length Repeatability: 3.0 µm
• Measuring Range
  • Vertical: 300 mm
  • Diameter: 60 mm
  • Maximum part size: 170 ⌀ mm x 300L mm

Includes

• Helix Motion for Thread Measurement
  • +/- 15 degrees of movement for the optics about the part to properly check features such as thread profiles
