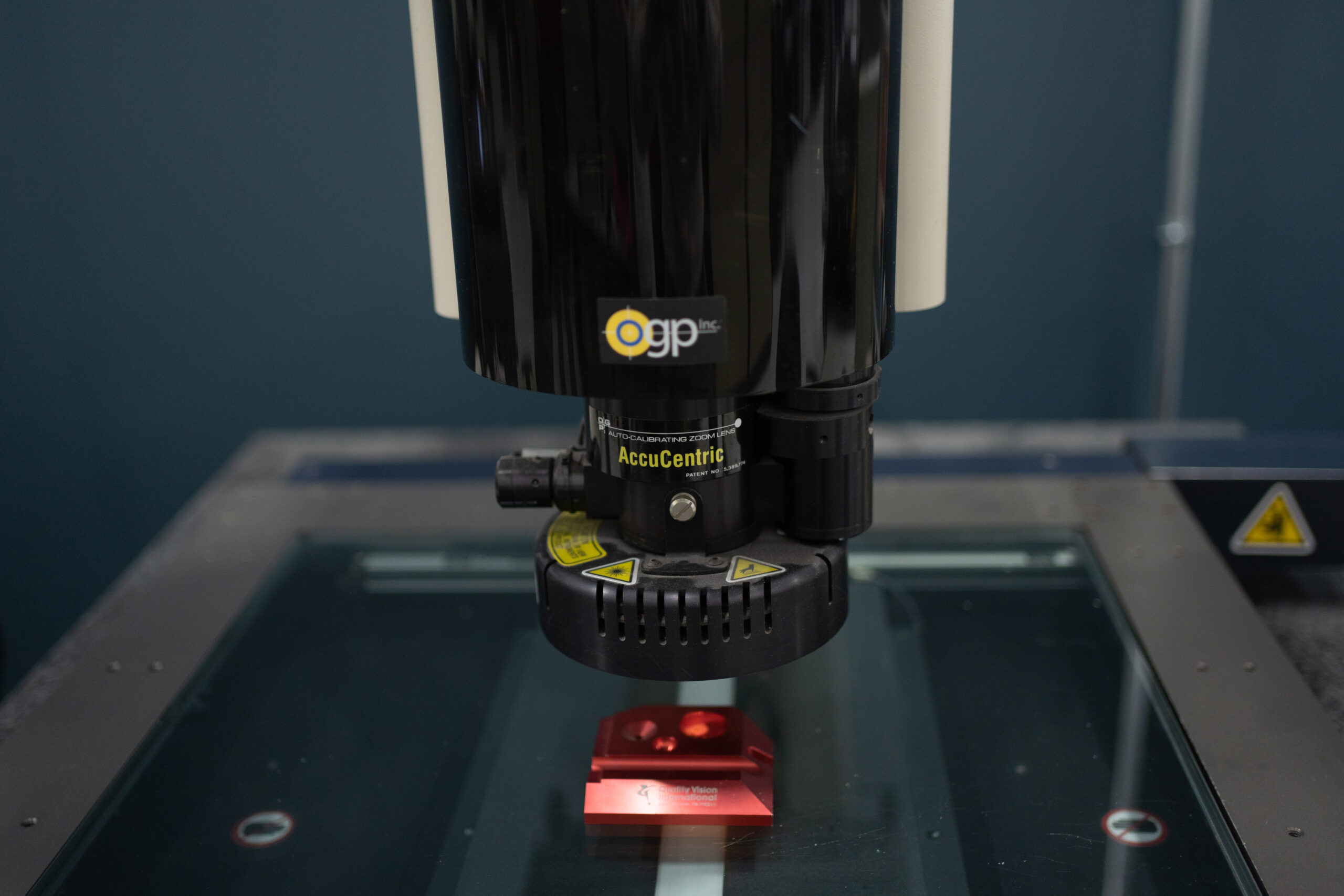

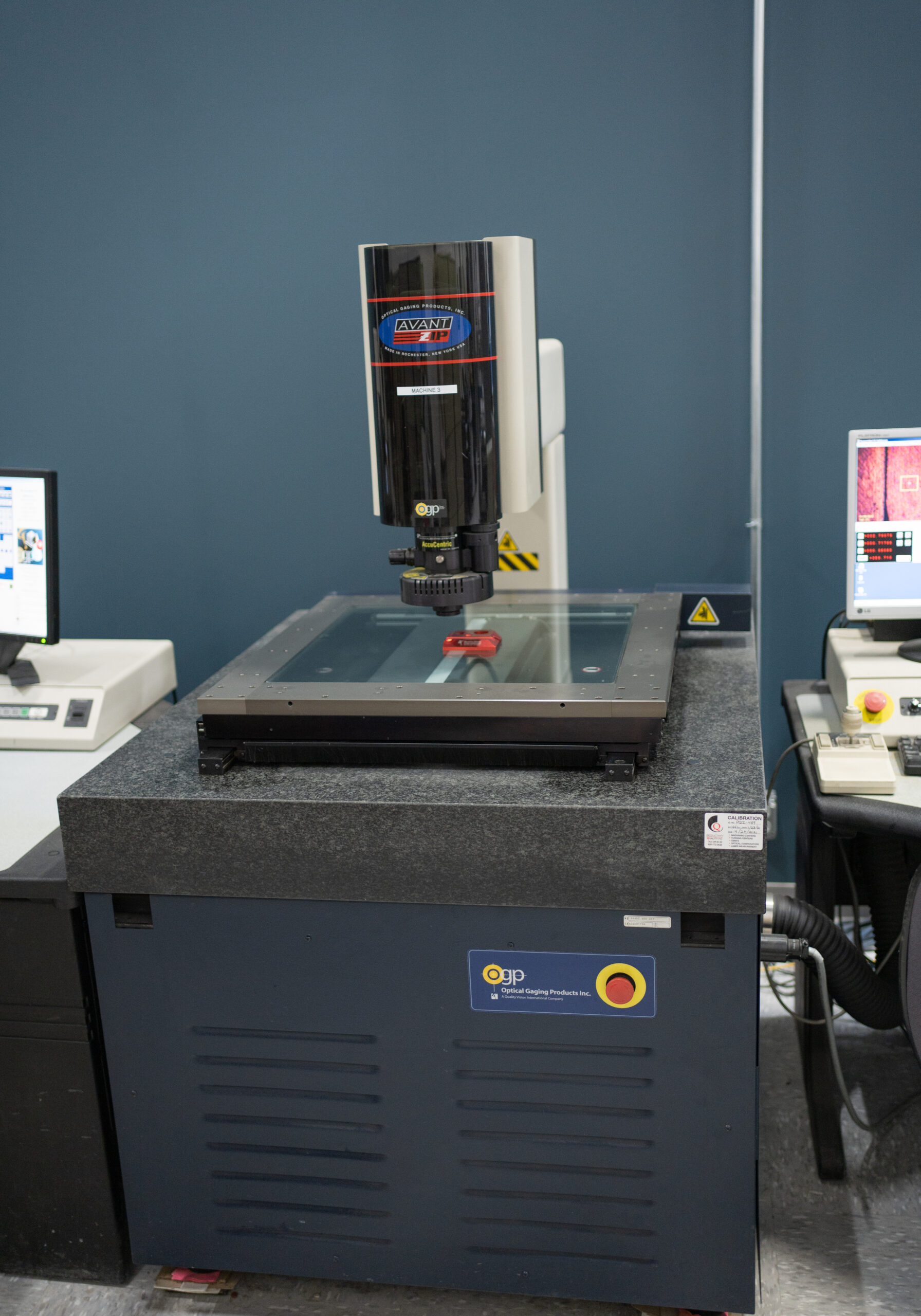

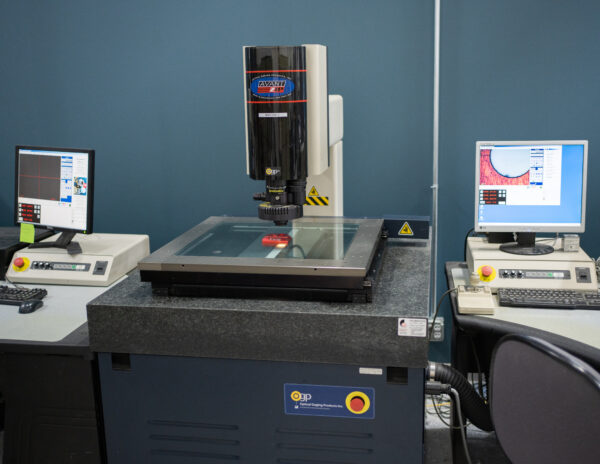

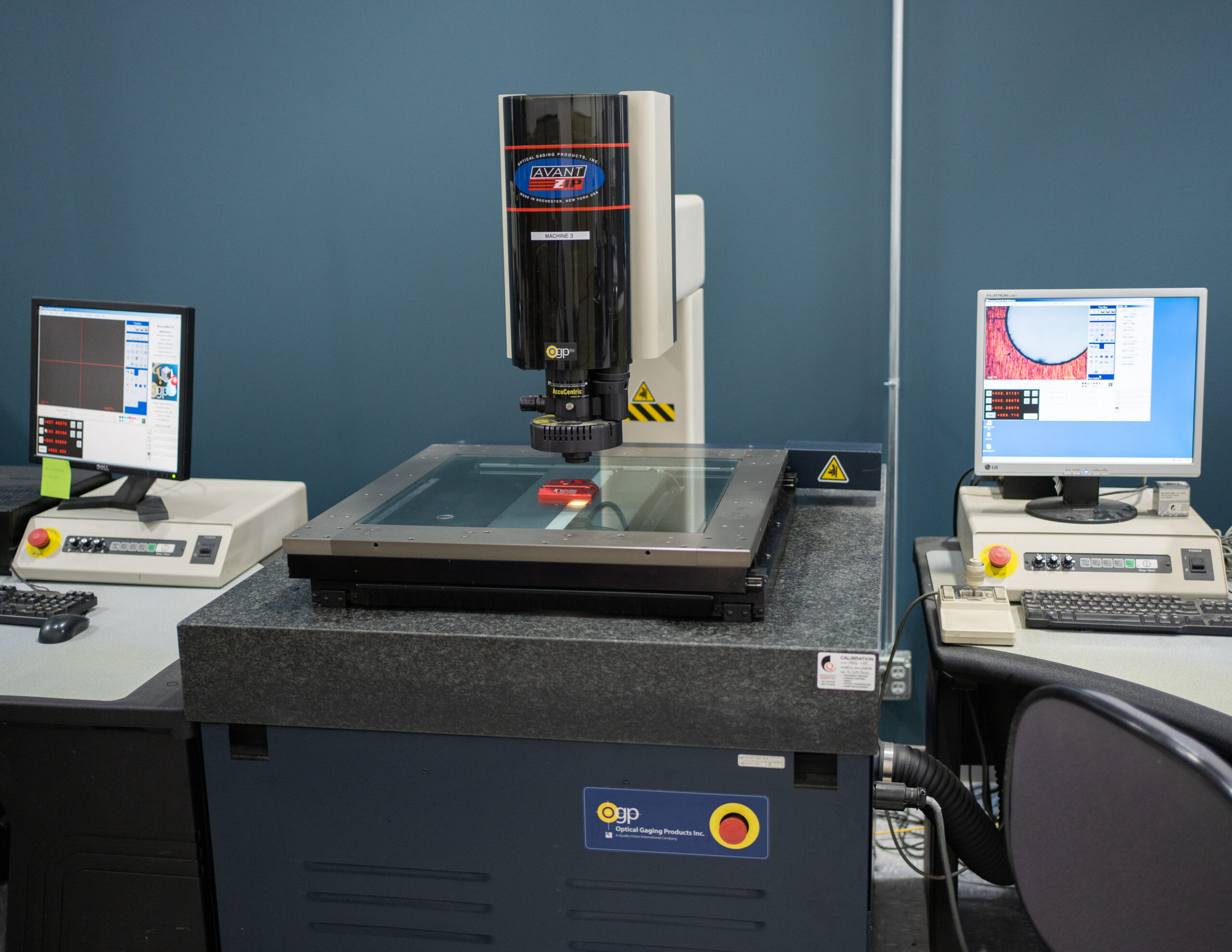

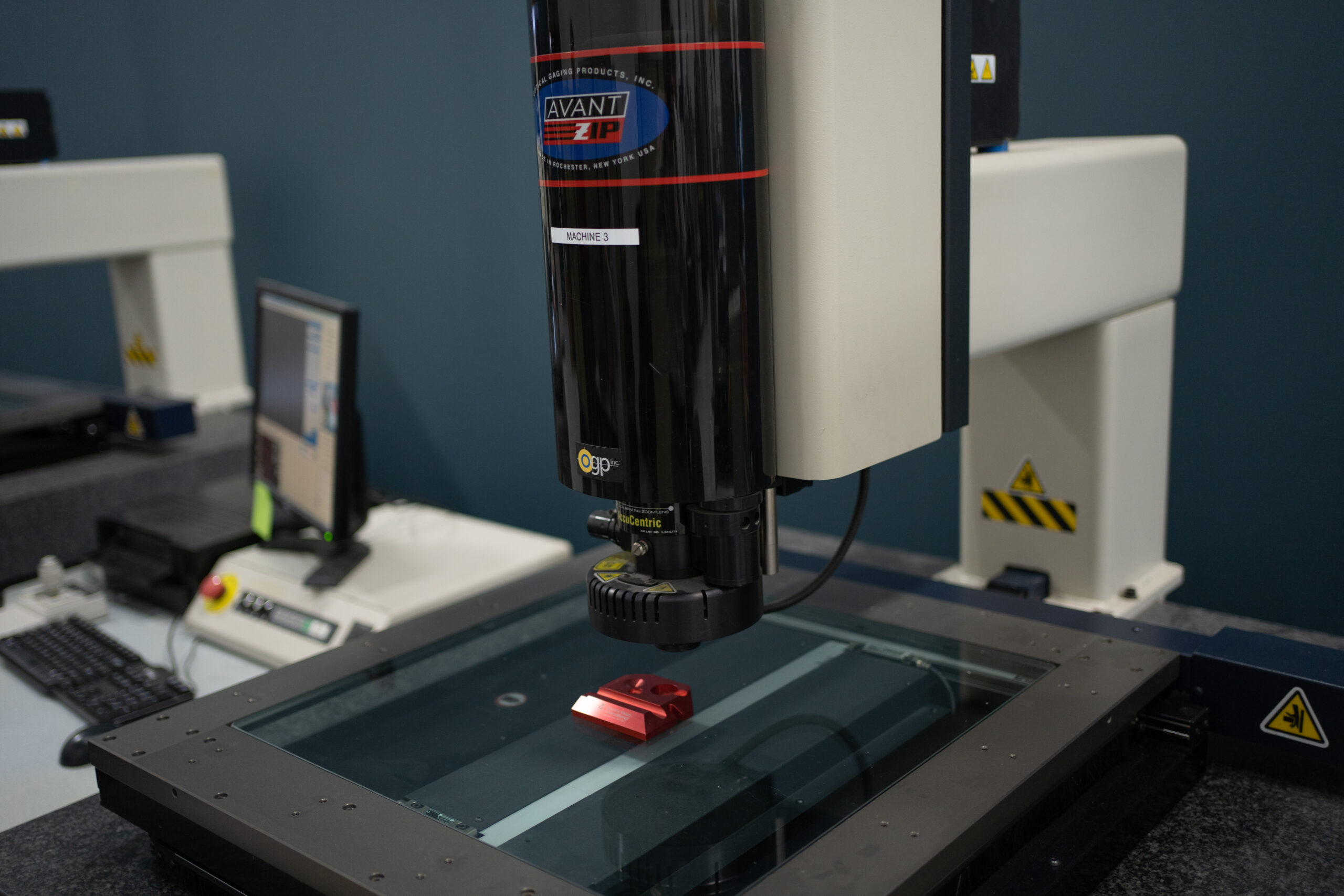

OGP Avant SmartScope Zip 400

SKU: OGP-AV-ZIP-400-1 Category:
Sale!

Looking for increased accuracy, inspection throughput, data flexibility, and the ability to measure larger parts? The Avant 400 is here to satisfy the needs of your toughest non contact measuring applications!

This system was manufactured in 2001 and includes MeasureMind 3D software Ver. 14.3.61, Computer (Win XP OS) and Monitor.

Specifications:

  • Measuring Range
    • X: 450mm/18”
    • Y: 450/18”
    • Z: 200/8”
  • Accuracy:
    • XY: E2 =(4.0+8L/1000) µm
    • Z: (4.0+8L/1000) µm
  • Workstation dimensions (DWH)
    •  1195 x 1195 x 760 mm, 45 kg
  • Lighting
    • Backlight: White Halogen Fiber Optic Illumination
    • Fiber Optic Ring Light: White Halogen Fiber Optic Illumination
    • Coaxial (TTL): White Halogen Fiber Optic Illumination
    • SmartRing Light: Red 6 Ring LED

Make us an offer if you’re interested in high speed performance and optical sophistication.

$27,500.00
