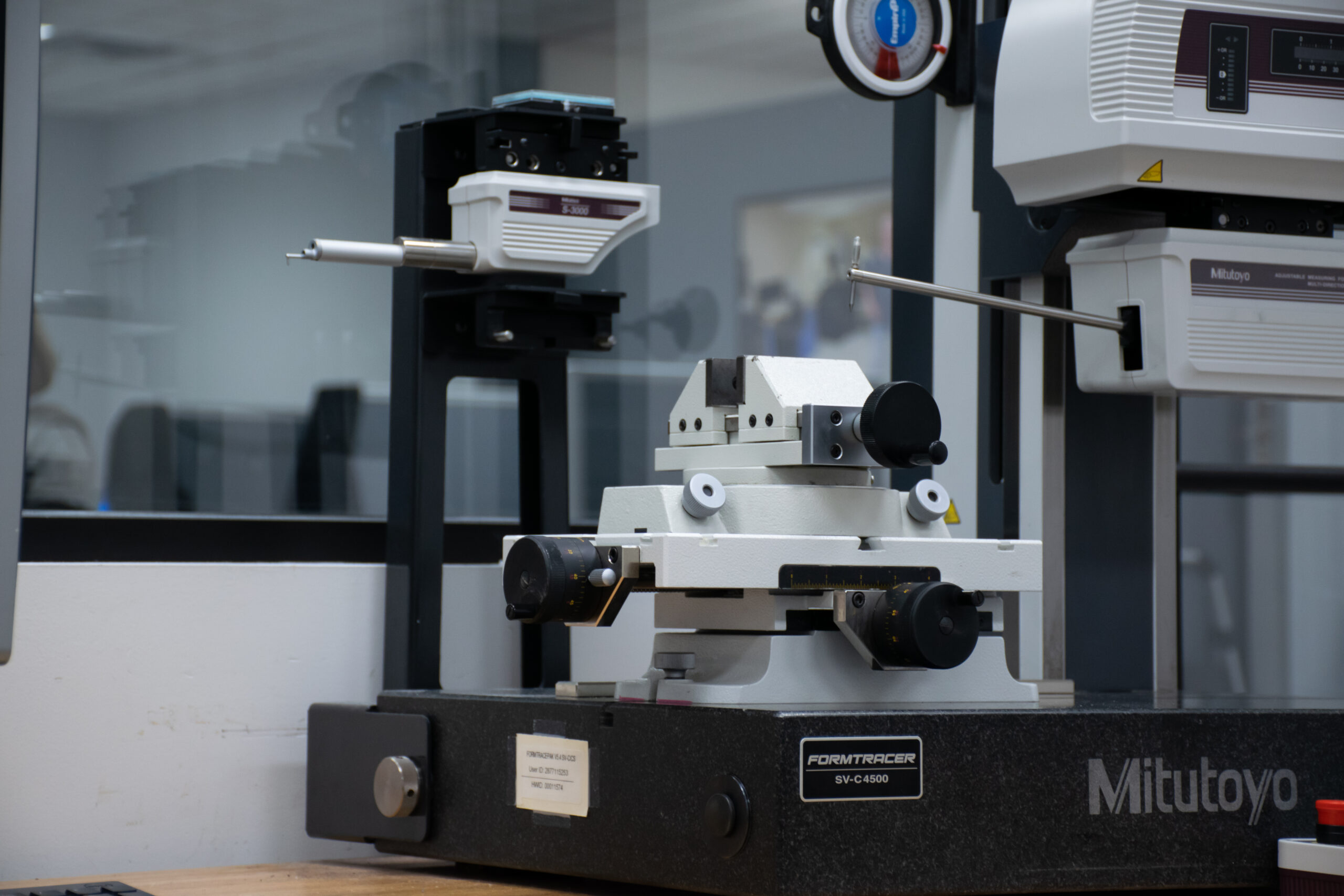

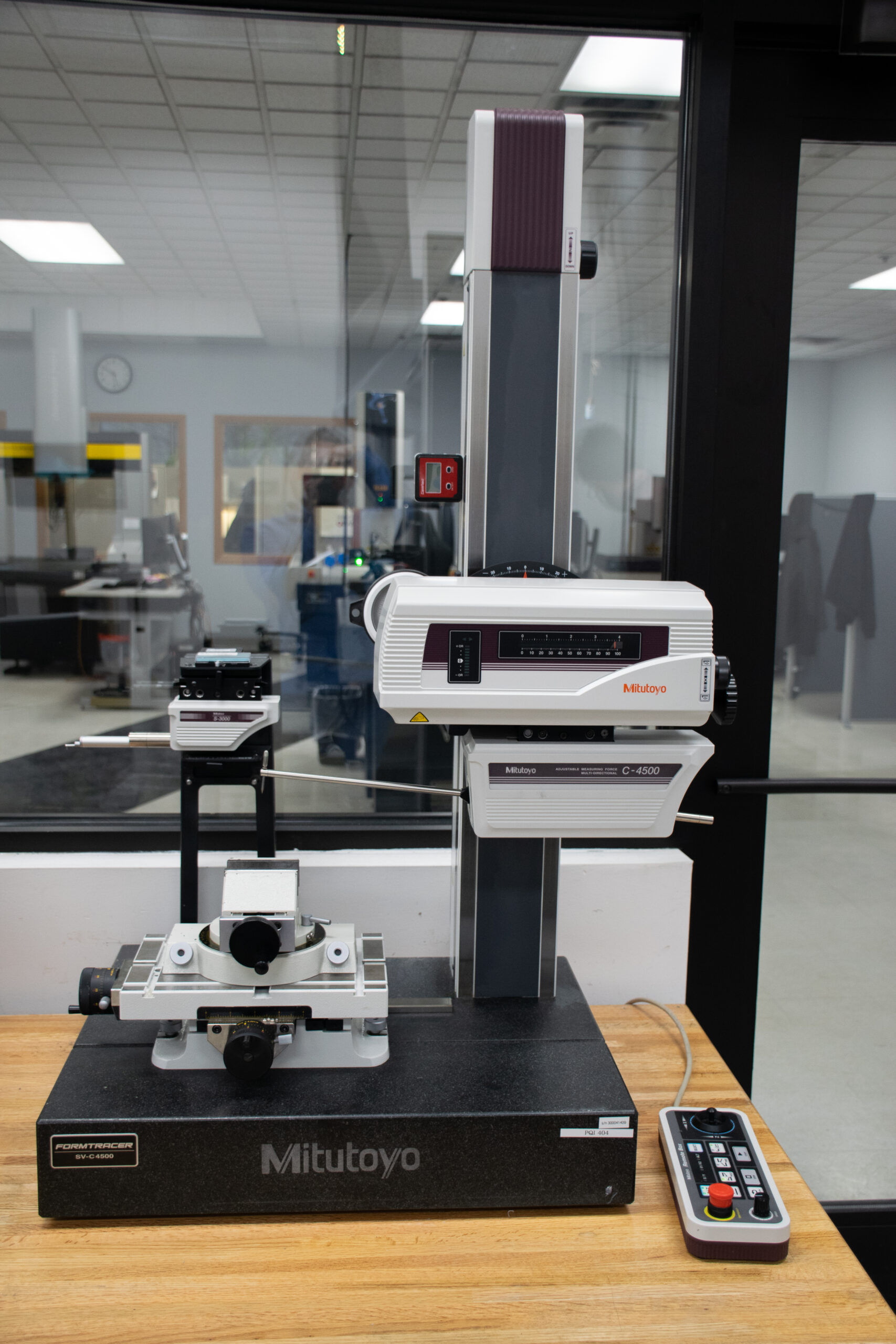

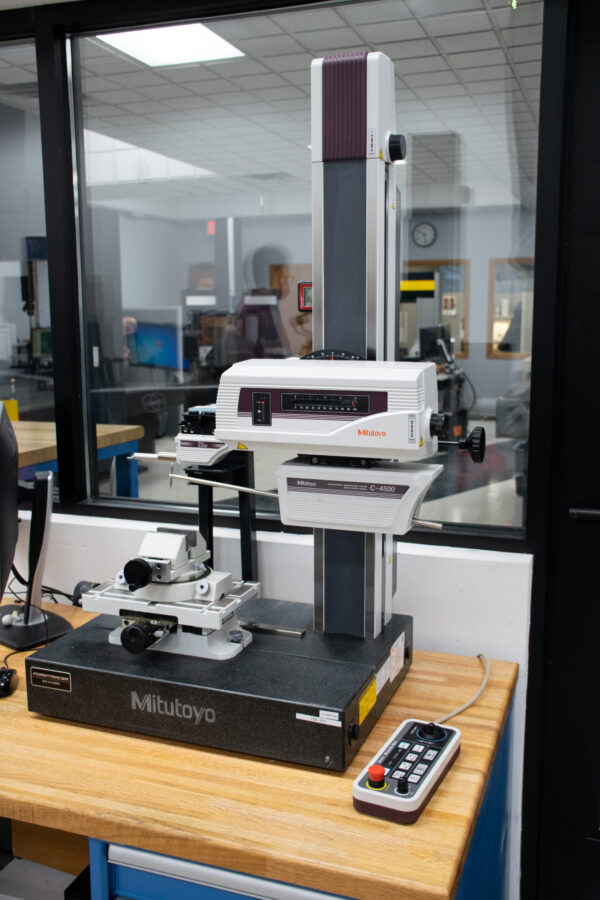

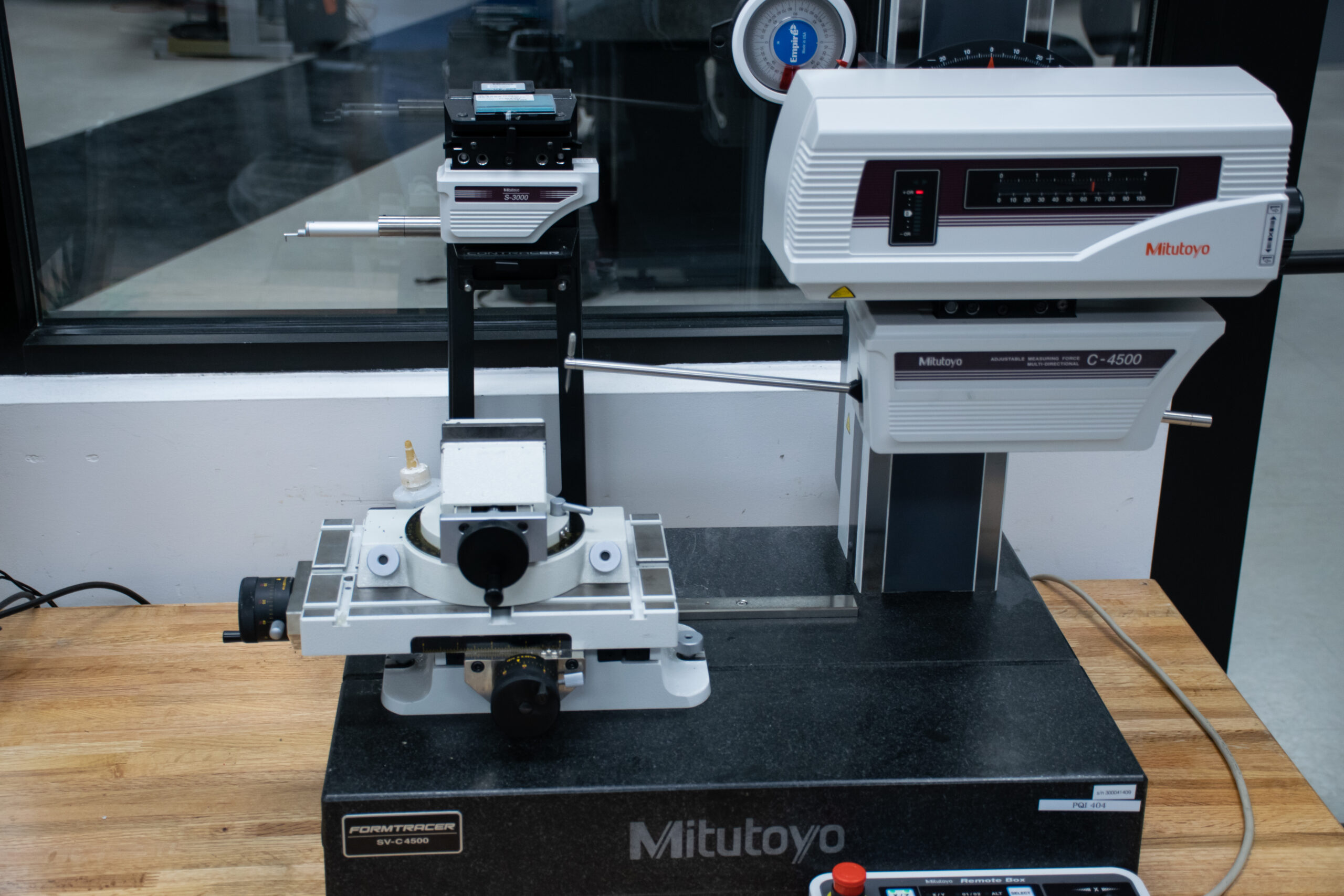

Mitutoyo Formtracer SV-C4500

SKU: MIT-FT-SV-C4500-H4 Category:

Built in 2014, this system features dual-purpose measurement and powerful analysis of surface roughness and contour combined with high accuracy, high drive speed and CNC measurement. The Formtracer includes PC (Win 7 OS), monitor, FormtracePak Form and Surface Texture Analysis Software.


  • X-Travel: 100mm (4″)
  • Z Column Height: 500mm
  • Z Vertical Detector Travel with Contracer Head: 60mm


  • Continuous measurement of upper and lower surfaces by Mitutoyo double-sided conical stylus
  • One-touch arm attachment using a magnetic joint for quick and easy arm replacement with safety mechanism
  • Programmable measurement for multiple measurements

Installation and Calibration additional, offered by Mitutoyo America. Approximately $3,000.00.
