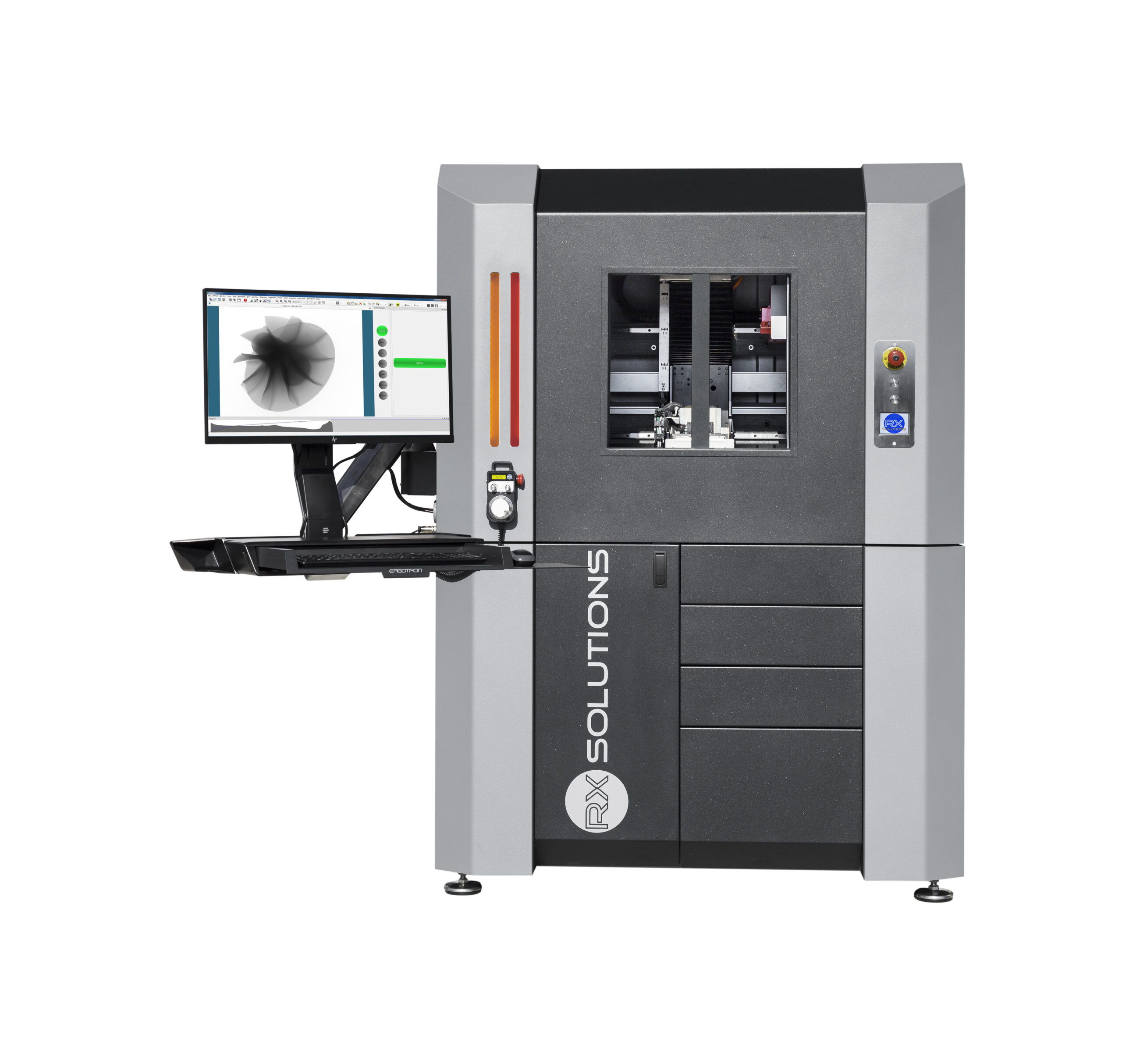

1. EasyTom S 150 kV Micro CT System
This EasyTom S Micro CT System is designed for precision 3D internal and external inspection. It delivers resolutions down to 2 µm with a fast, high-resolution detector and offers multiple microfocus generator configurations for a wide range of materials and applications. It was manufactured in 2024 and has been kept in a metrology lab environment.
Scanning Capabilities:
Highest Resolution: 2 µm (JIMA & QRM Charts)
Maximum Scanned Volume (ØxH): 185 mm x 390 mm
Maximum Sample Weight: 5 kg
CT Specifications:
Microfocus Sealed Tube:
• 150 kV / 75 W / 5 µm focal spot
X-ray Detector: Flat panel, 25 cm x 32 cm active area
Pixel Pitch: 124 µm
Pixel Matrix: 2048 x 2560
Mechanical Specifications:
Cabinet Dimensions (HxWxD): 1870 mm x 1345 mm x 900 mm
System Weight: 1020 kg
Generator to Detector Distance: 610 mm
Includes:
- Control computer with X-Act software
- Integrated workstation and monitor
- User manual and standard calibration artifacts
Contact for price.
