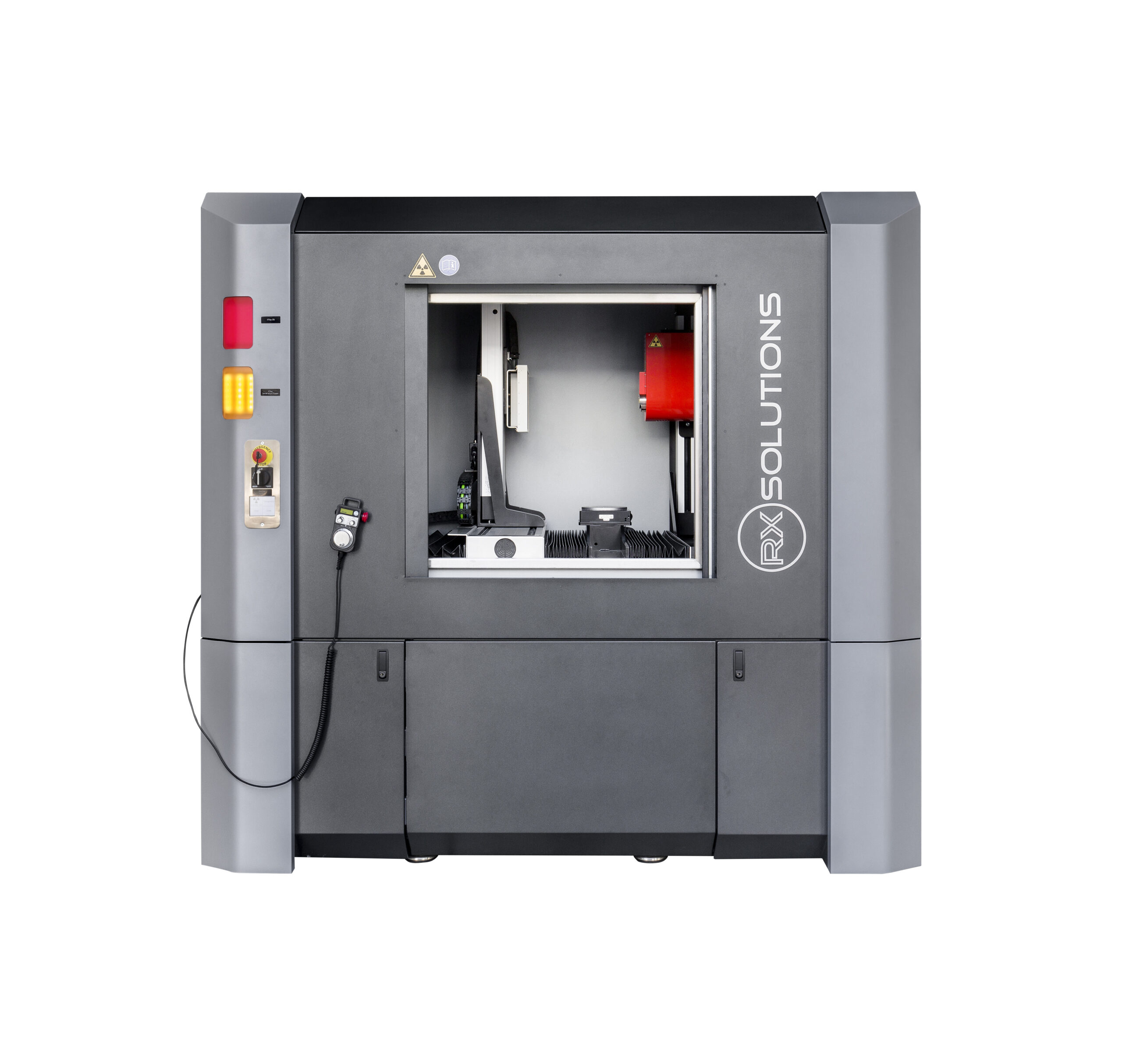

2. EasyTom 230 kV CT System

This EasyTom 230 kV system combines exceptional detail with a large inspection volume, making it suitable for a wide variety of applications—from advanced materials research to industrial part inspection. This system is fully tested and in excellent condition, with complete functionality verified. It was manufactured in 2019 and has been kept in a metrology lab environment.

Scanning Capabilities:
Voxel Resolution: Down to 350 nm/voxel
Maximum Scanned Volume (ØxH): 320 mm x 420 mm
In-situ µCT capability
Programmable automatic control cycles for repeatable workflows

X-ray Generator:
Voltage up to 230 kV
Sealed or open type micro-focus tube options
Open nano-focus tube (160 kV)
Resolution down to 400 nm/voxel
Multiple target and filament options available

Mechanical Specifications:
Safety Cabinet Footprint (HxWxD): 2100 mm x 1100 mm x 2000 mm
Lead and steel construction with full X-ray safety interlocks
Motorized safety door with automatic lock during X-ray emission
High-accuracy motorized rotation and translation axes
Optional air-bearing rotation stage for heavy samples
Optional lateral and vertical imager shift for extended field of view and reduced artifacts

Includes:

• Control computer with X-Act software
• Integrated workstation and monitor
• User manual and standard calibration artifacts

Installation and training available upon request.

Contact for price.
