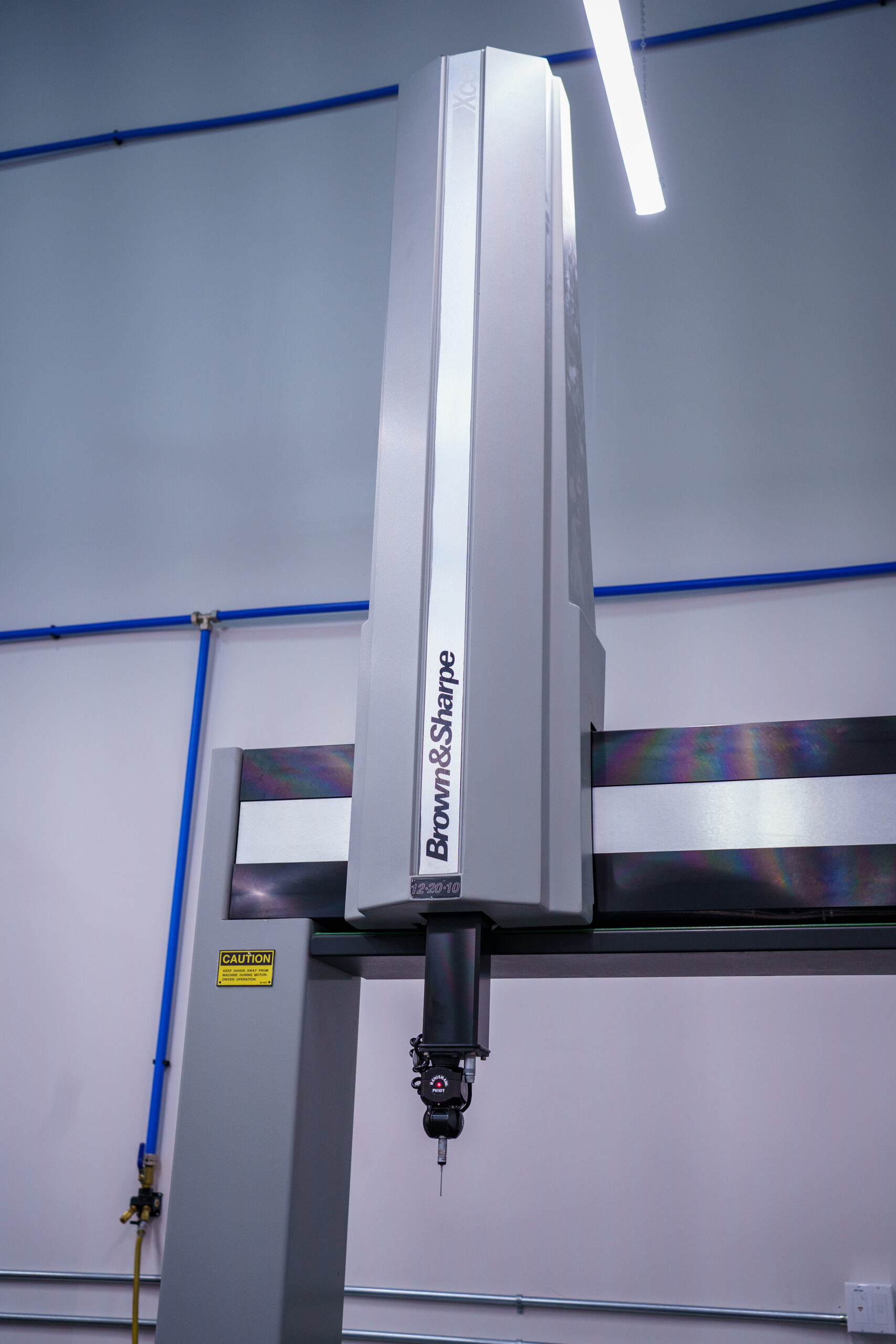

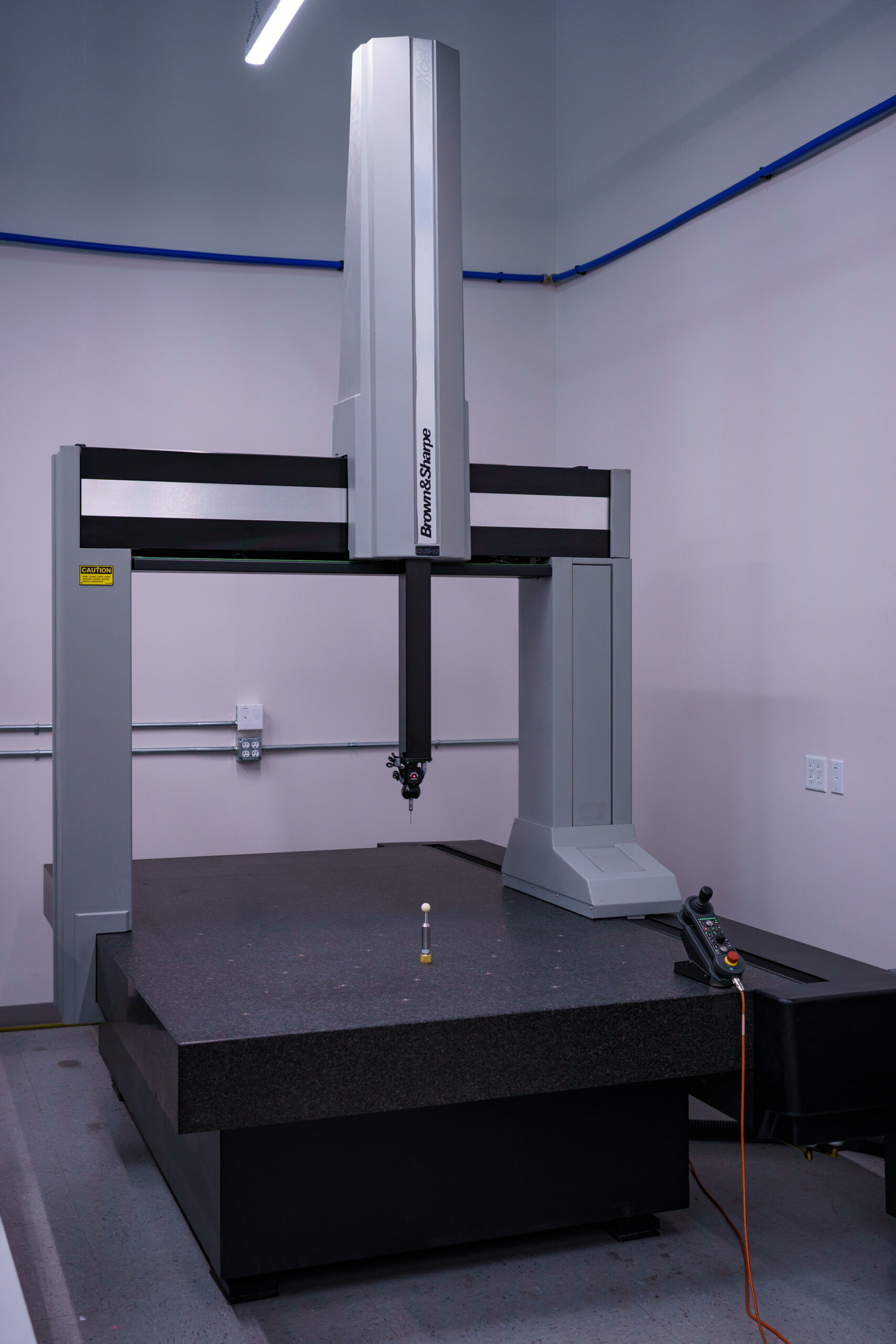

B&S Xcel 12.20.10

Brown & Sharpe Xcel 122010 CMM was fully refurbished in 2006 and is a well maintained, clean running machine. Computer, monitor, and keyboard are included with the sale of this machine as well as the current version of PC-DMIS software.

Specifications:

• Accuracy
  • Linear: 0.00035” x 0.00053” x 0.00026”
  • Volumetric: 0.0007”
  • Repeatability: 0.00024”
• Measuring Range: 47.2” x 78.7” x 39.4”

Includes:

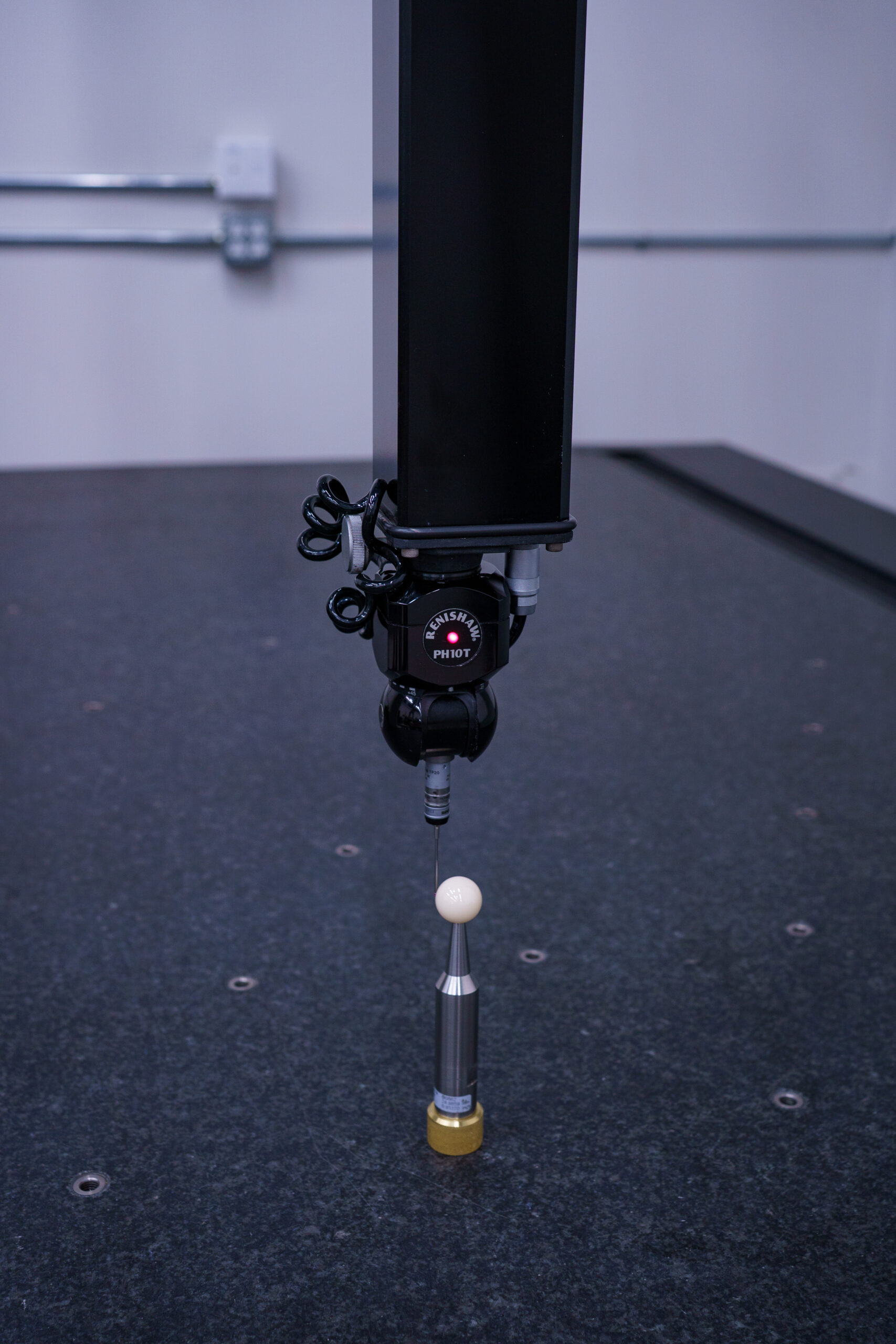

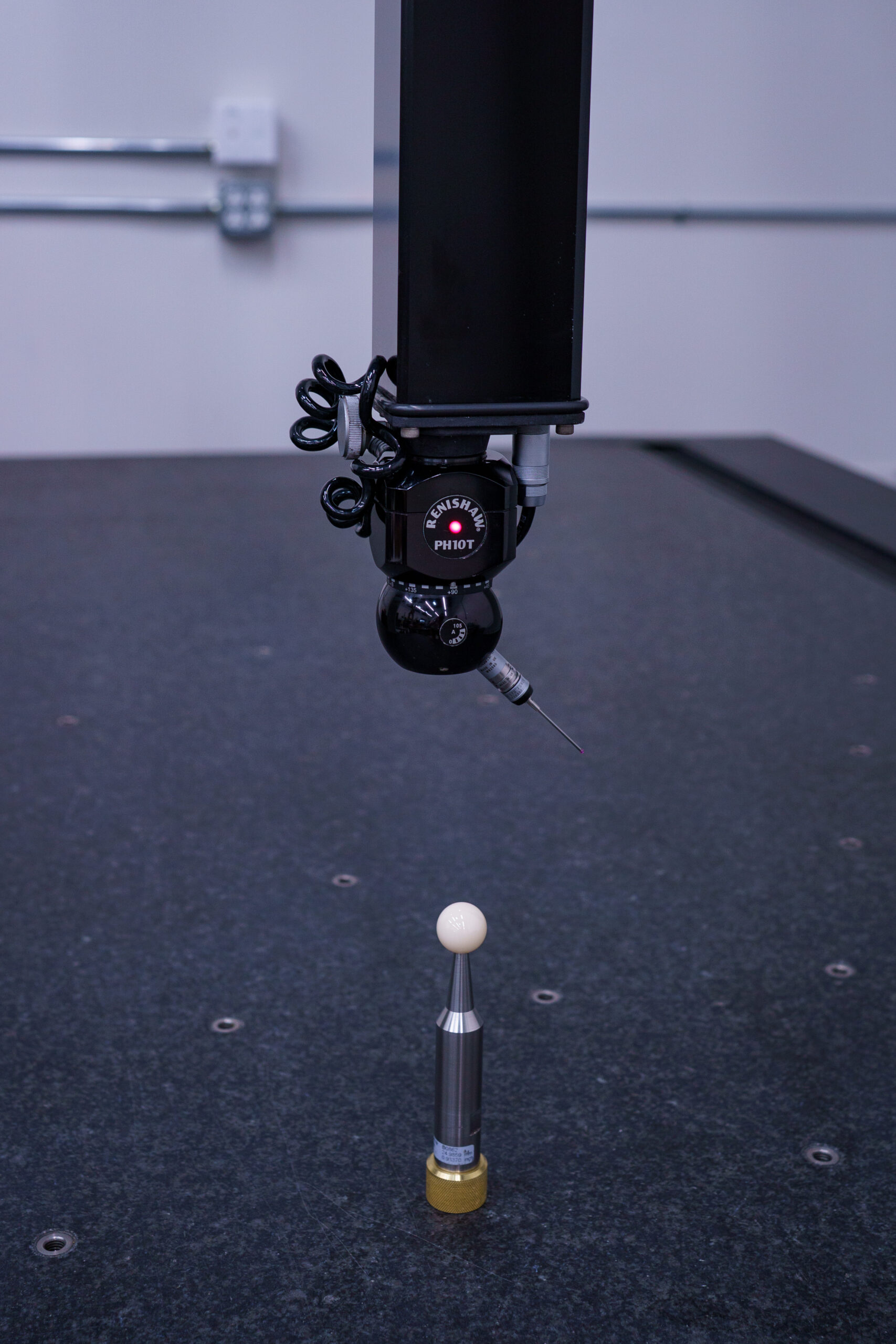

• Renishaw PH10T Motorized Probe Head
• Renishaw TP20 Touch Probe

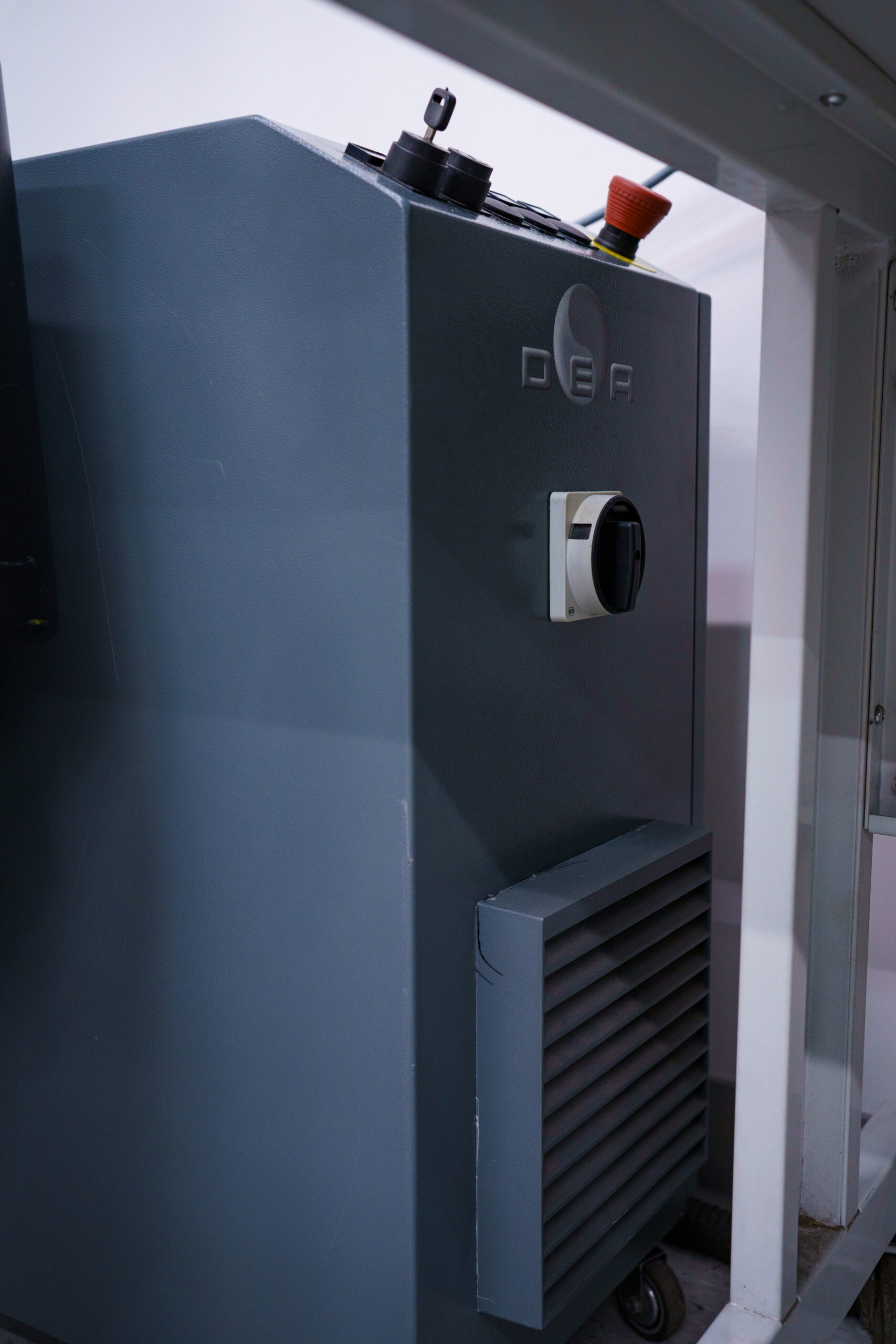

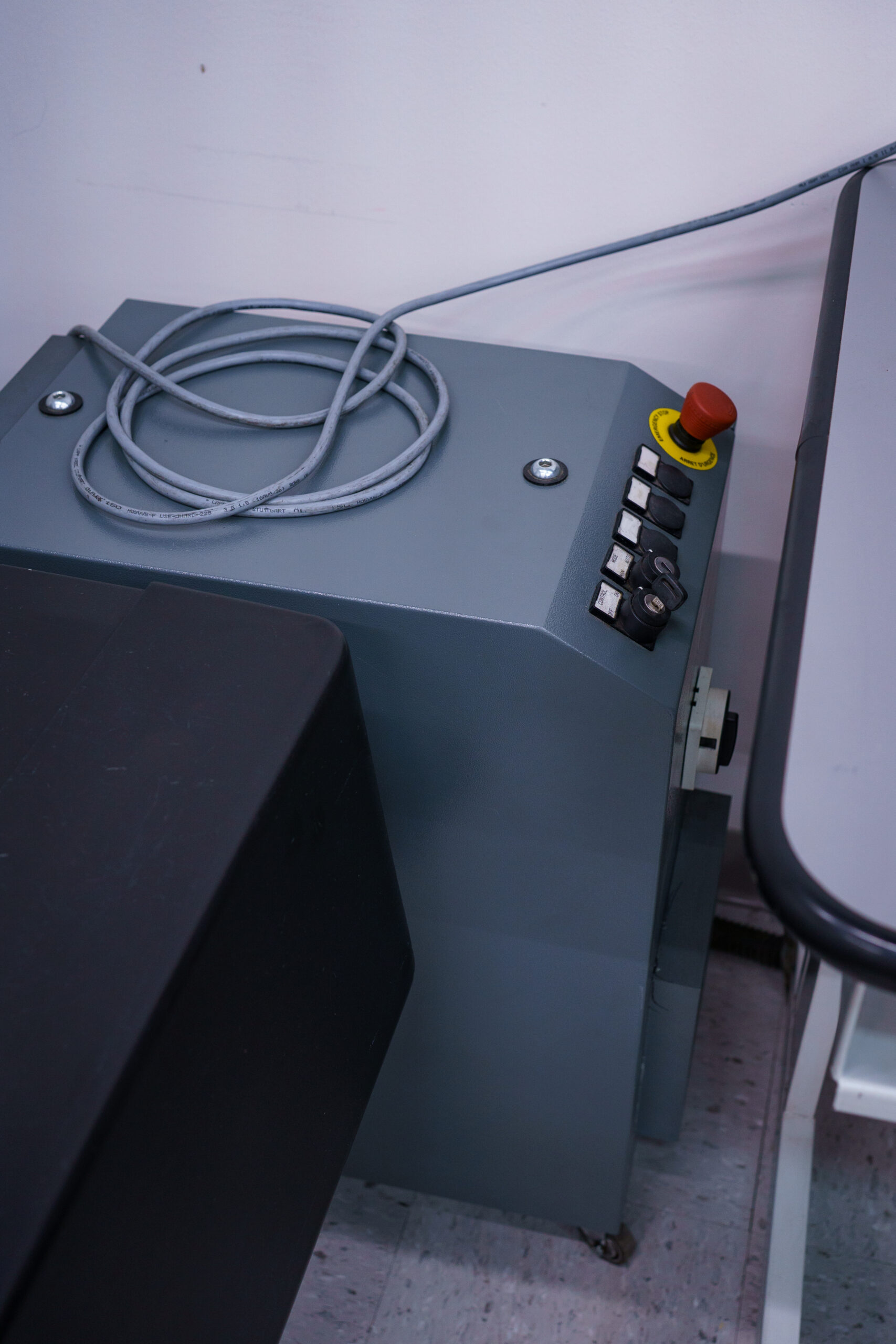

• Hexagon B3C-LC Controller
