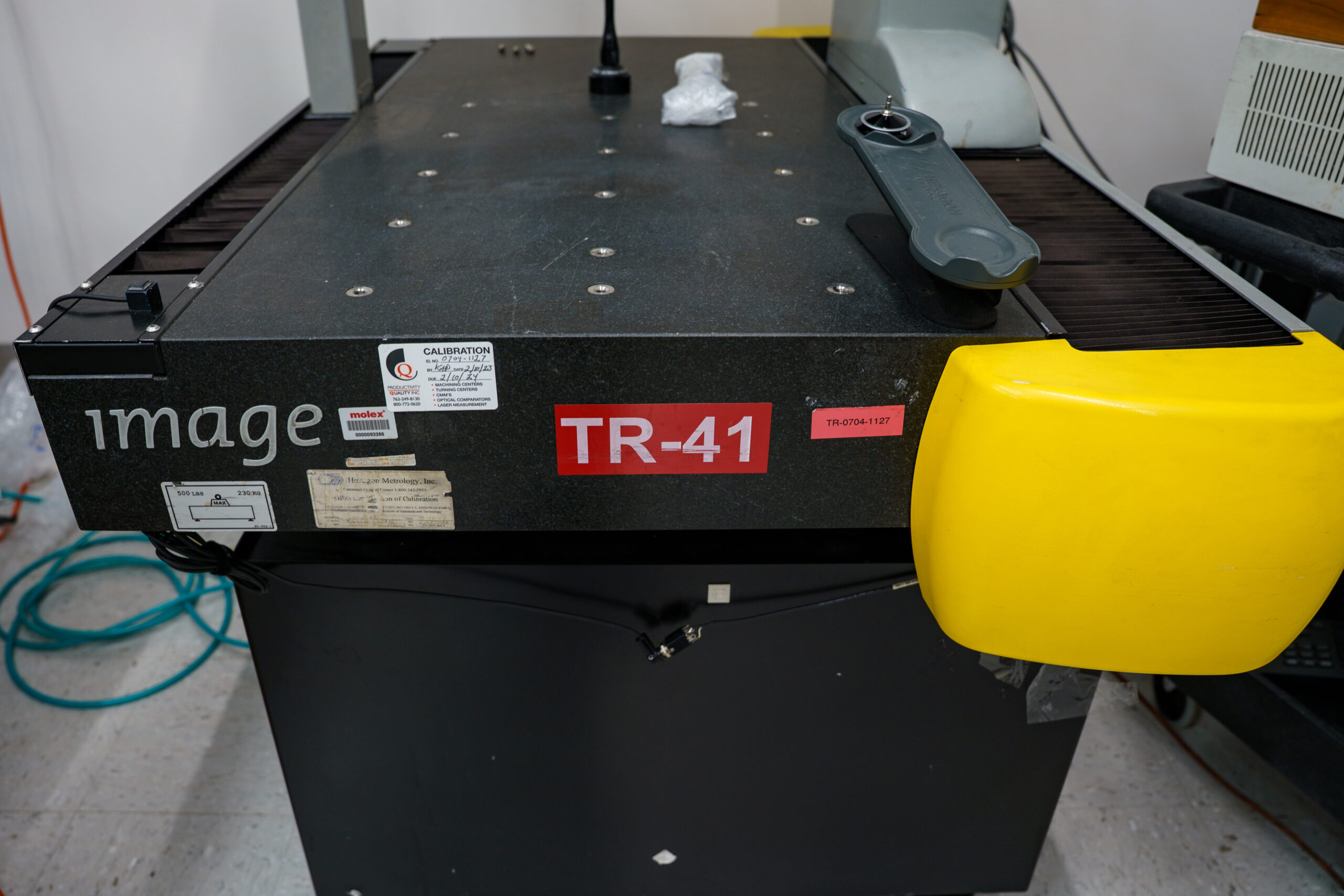

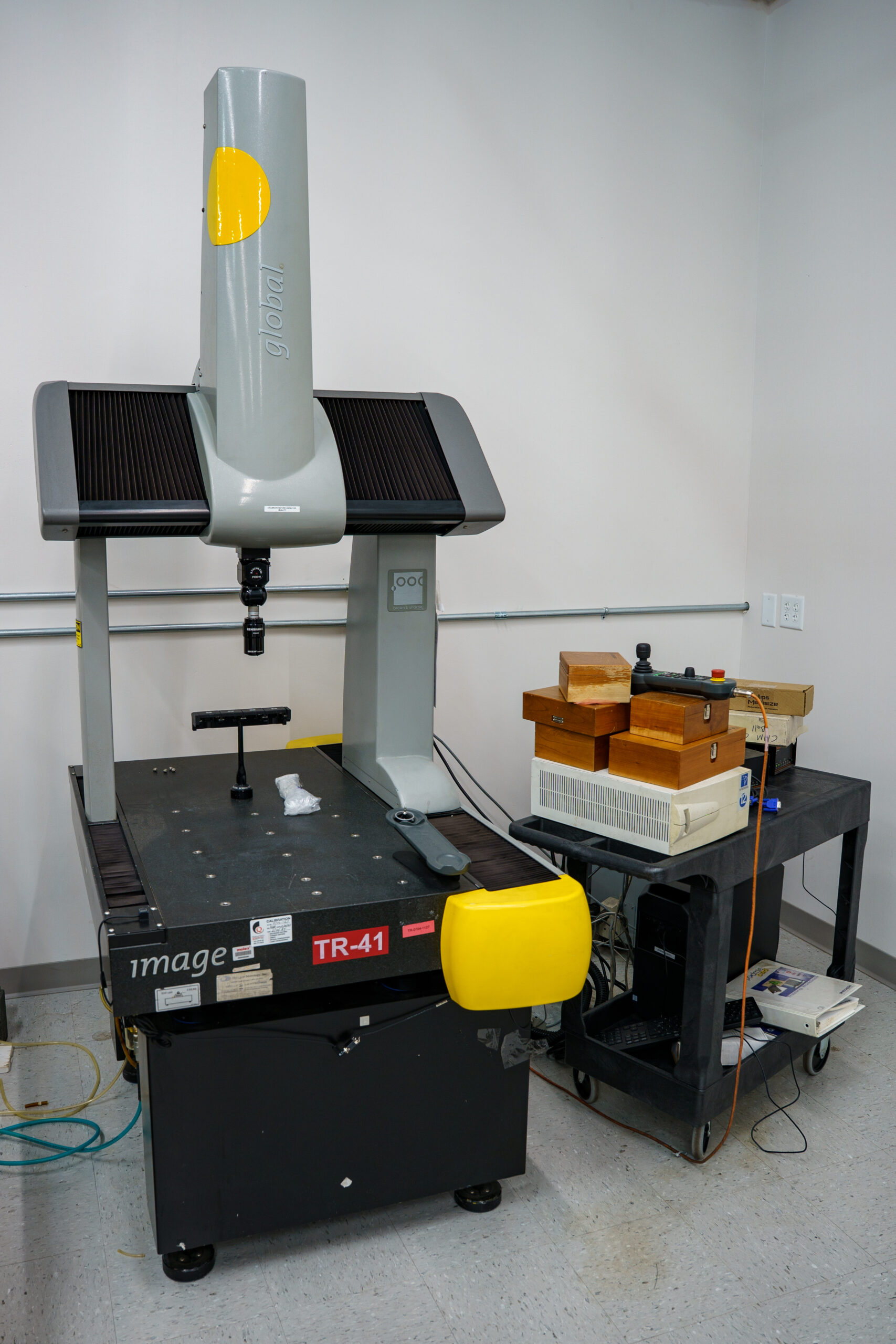

B&S Global Image 575
Built in 2004 and comes equipped with a computer, monitor, keyboard, and PC-DMIS CAD++ 2020.2 software.
Specifications:
- Accuracy
- Linear E=U3: 1.7µm + L/333
- Volumetric: 5µm
- Repeatability: 1.5µm
- Measuring range
- X: 500mm
- Y: 700mm
- Z: 500mm

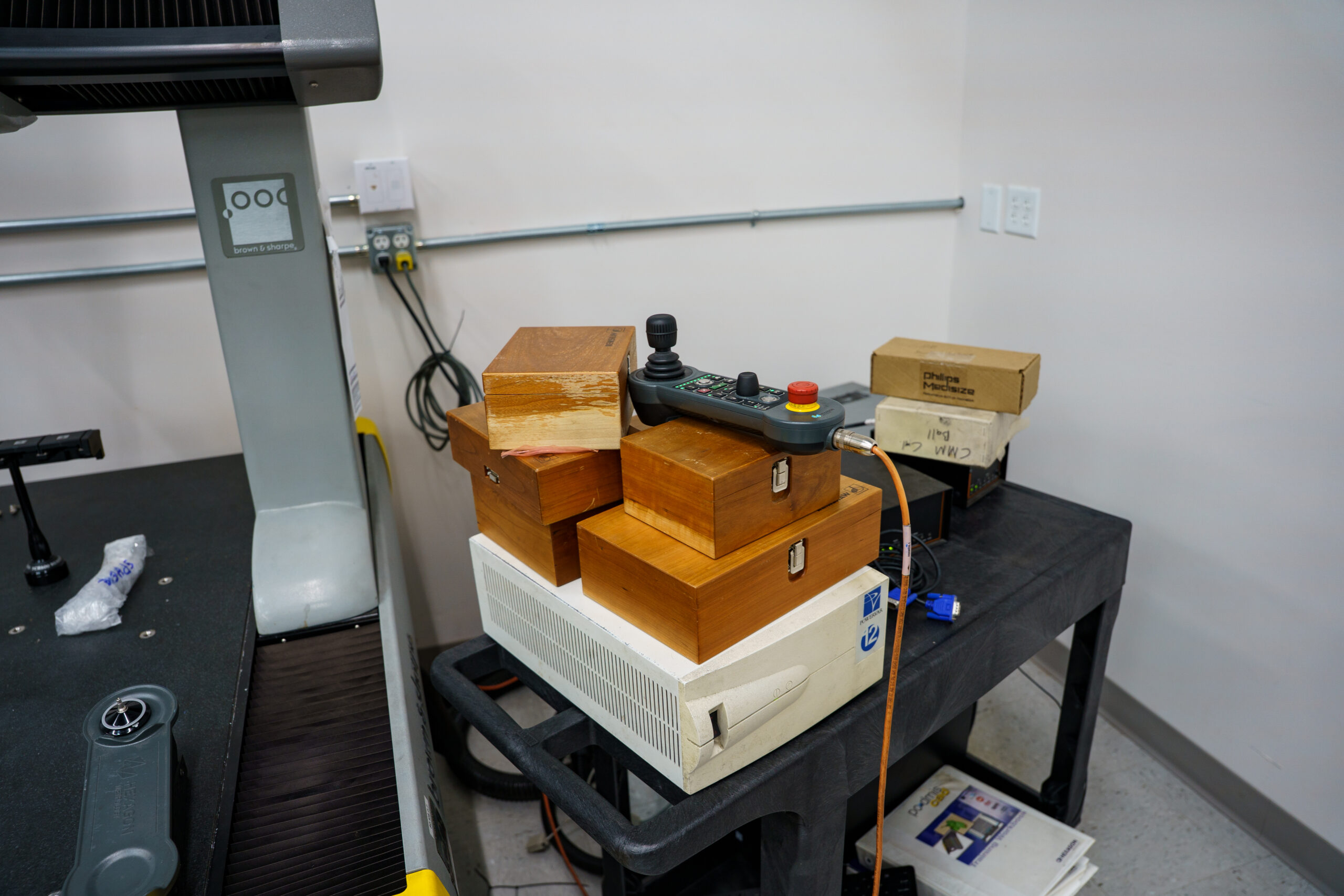

Includes

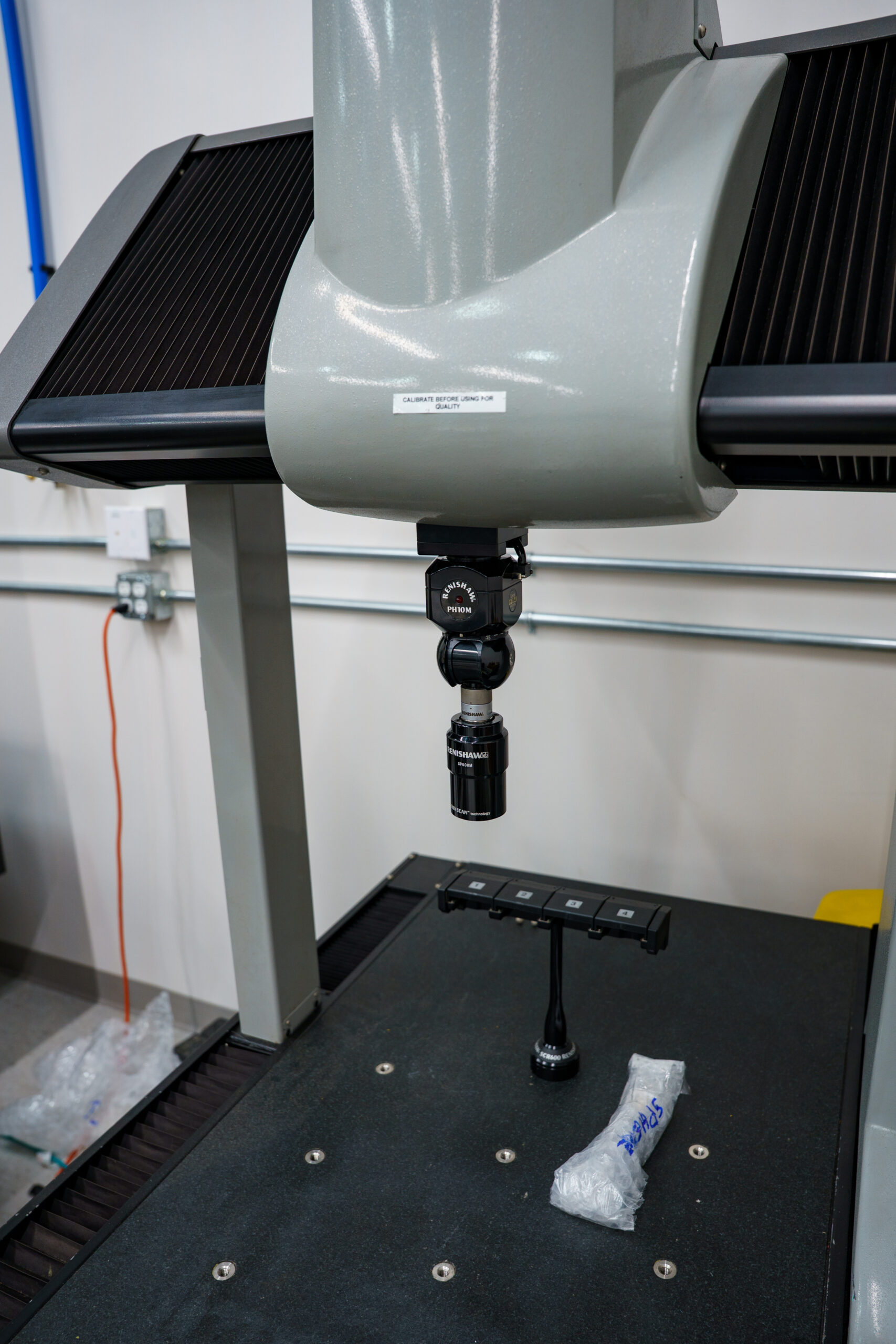

- Renishaw PH10M Auto-Indexable Probe Head
- Renishaw SP600M Scanning Probe
- Renishaw 4 Port Styli Change Rack

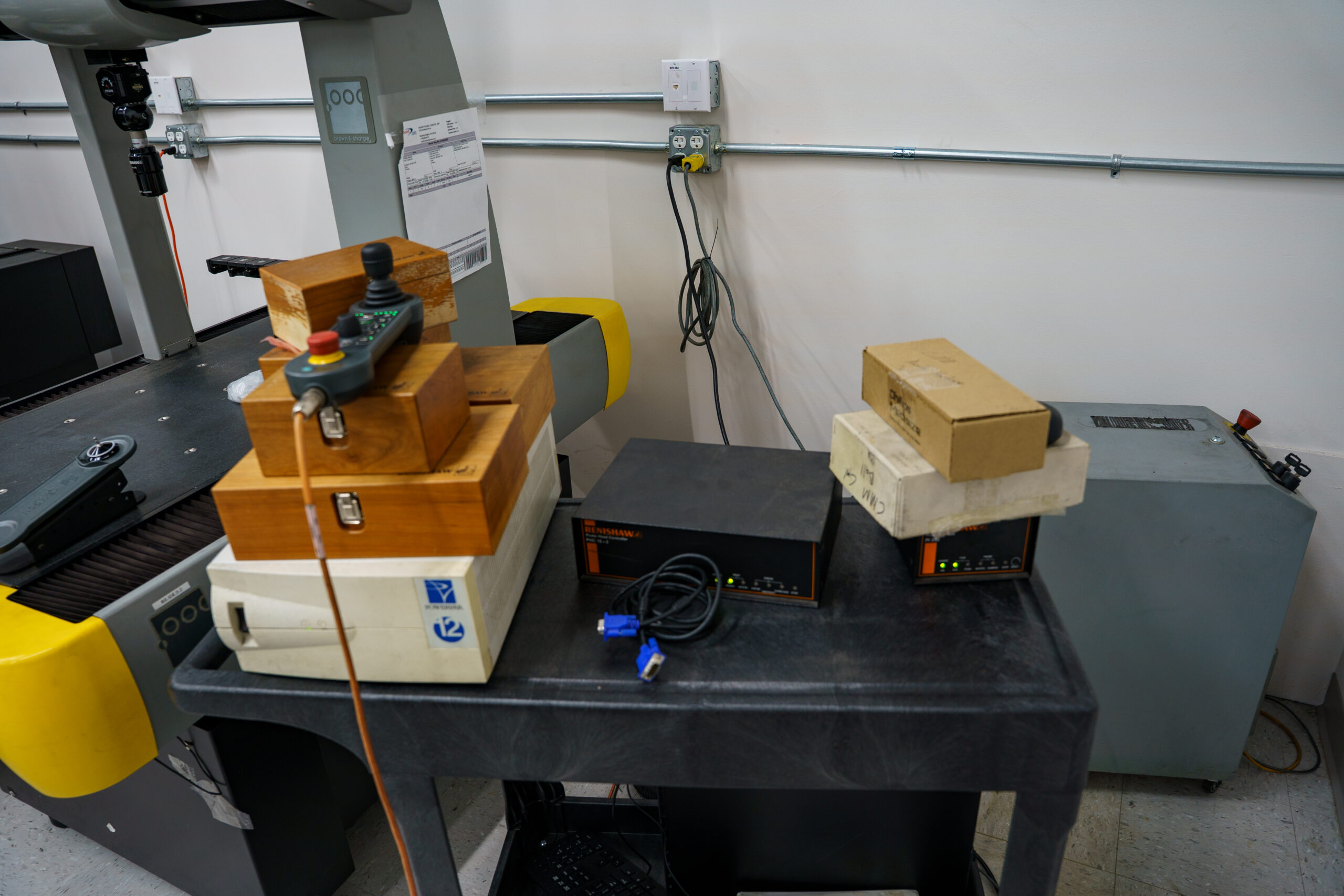

- Renishaw PHC10-2 & PI200 Controllers
- Bellows Covers on all axis
- Hexagons NJB Jog Box
$59,500.00
