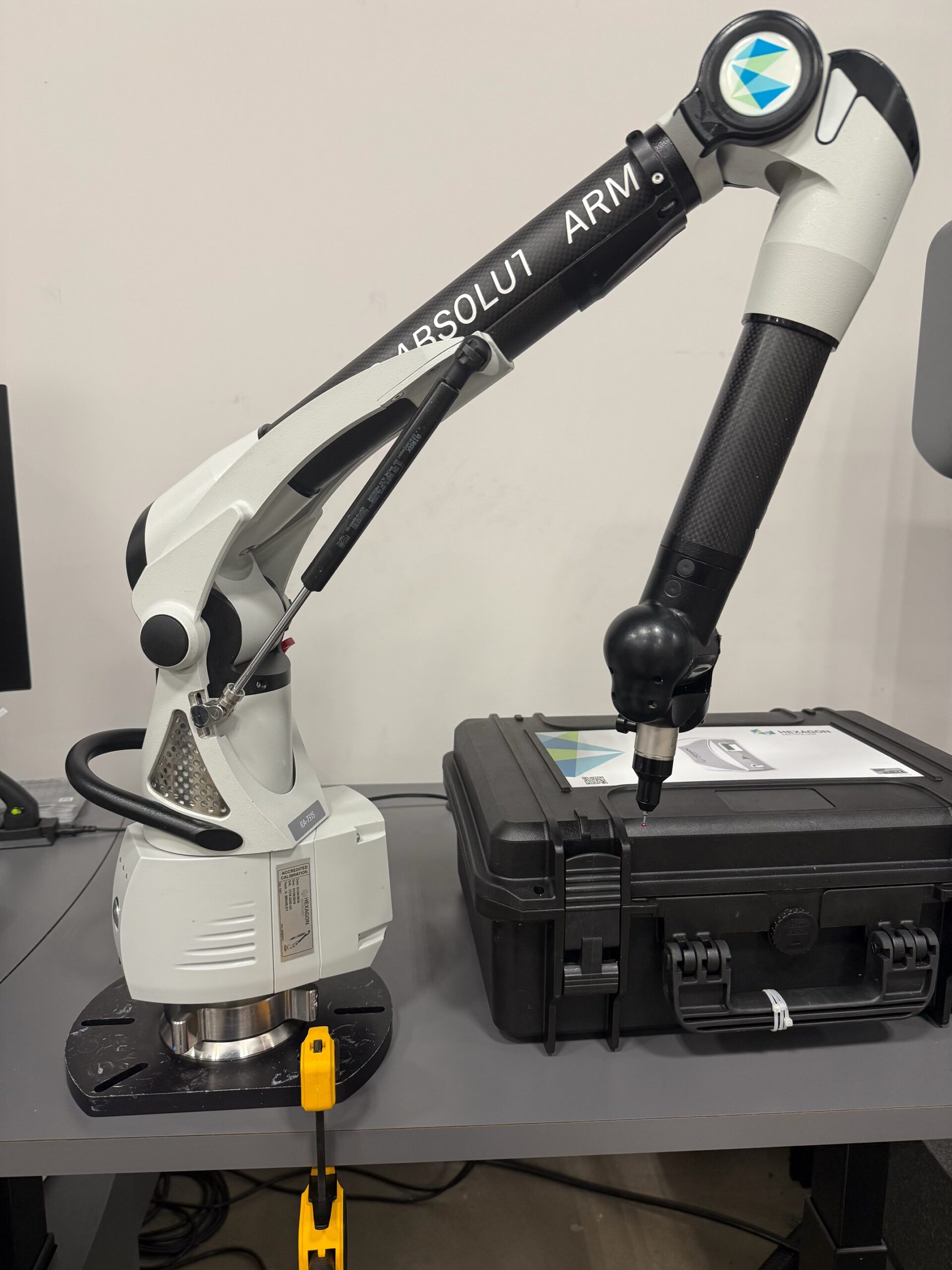

Absolute Arm RA-7315 with PH-L-8.9 Laser Scanner
This compact Absolute Arm was manufactured in 2014 and is fully functional. It features absolute encoders that allow for immediate use upon power-up without a homing/initialization procedure.
Arm Specifications:
- Volumetric accuracy
- ±0.0015” ( ±.037mm)
- Point Repeatability
- ±0.0010” ( ±0.025mm)
- Measuring Range
- 4.9 ft (1.5m)
HP-L-8.9 Laser Specifications:
- Point acquisition rate: 45,000 points/s
- Accuracy: 40 µm
Includes:
- HP-L-8.9 laser scanner
- TESA TKJ Ball Probes: 3mm Ruby, Point Probe, 15mm Steel Probe
- FP1 Scanning Pack
- Base plate with 3.5” bolt mounting ring
No software, no computer
$12,500.00
